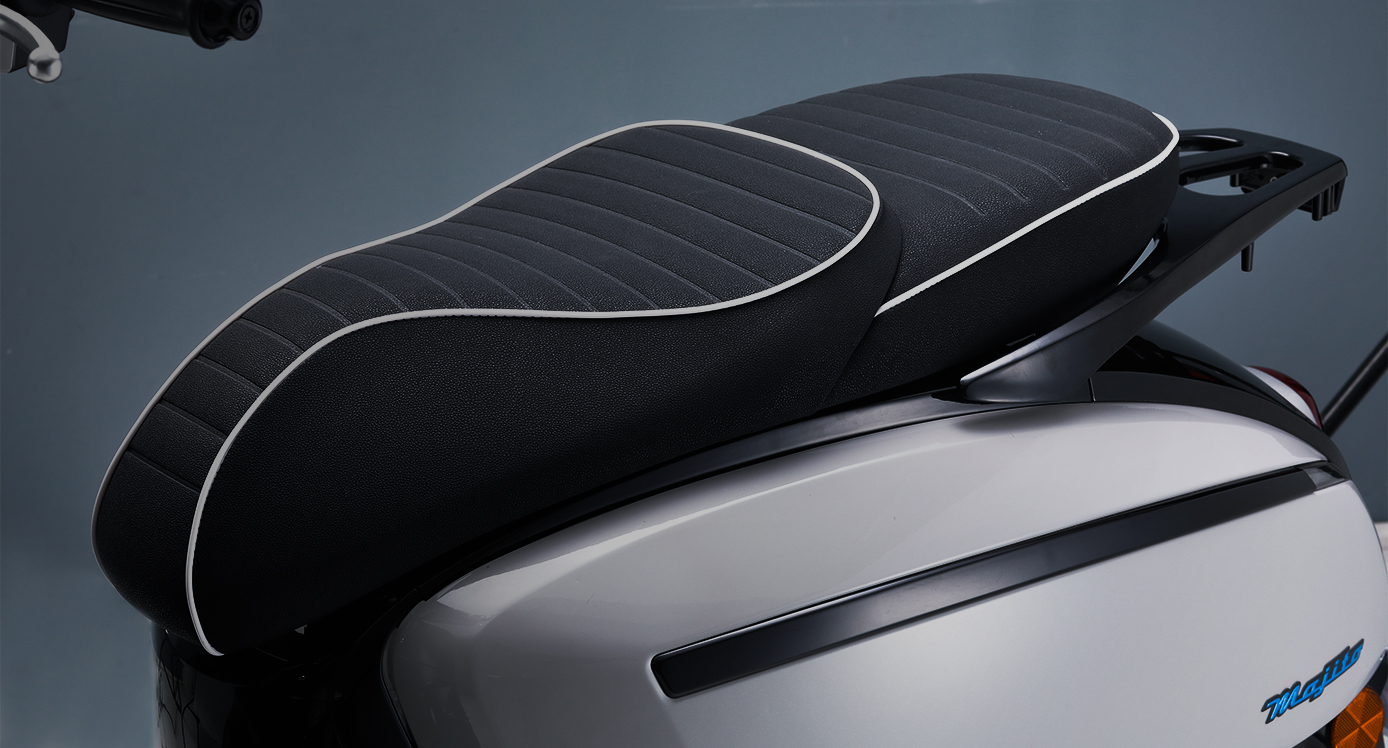

Split saddle
The saddle is uniquely designed with a split design to provide consumers with the best experience in styling and comfort.
The saddle is uniquely designed with a split design to provide consumers with the best experience in styling and comfort.

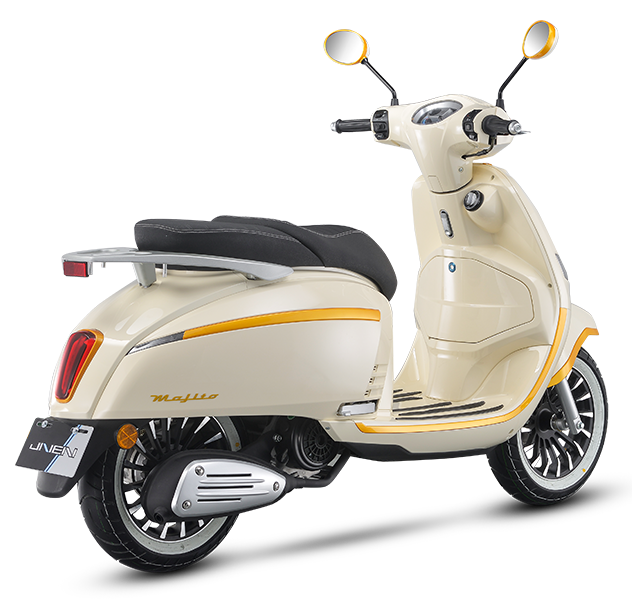

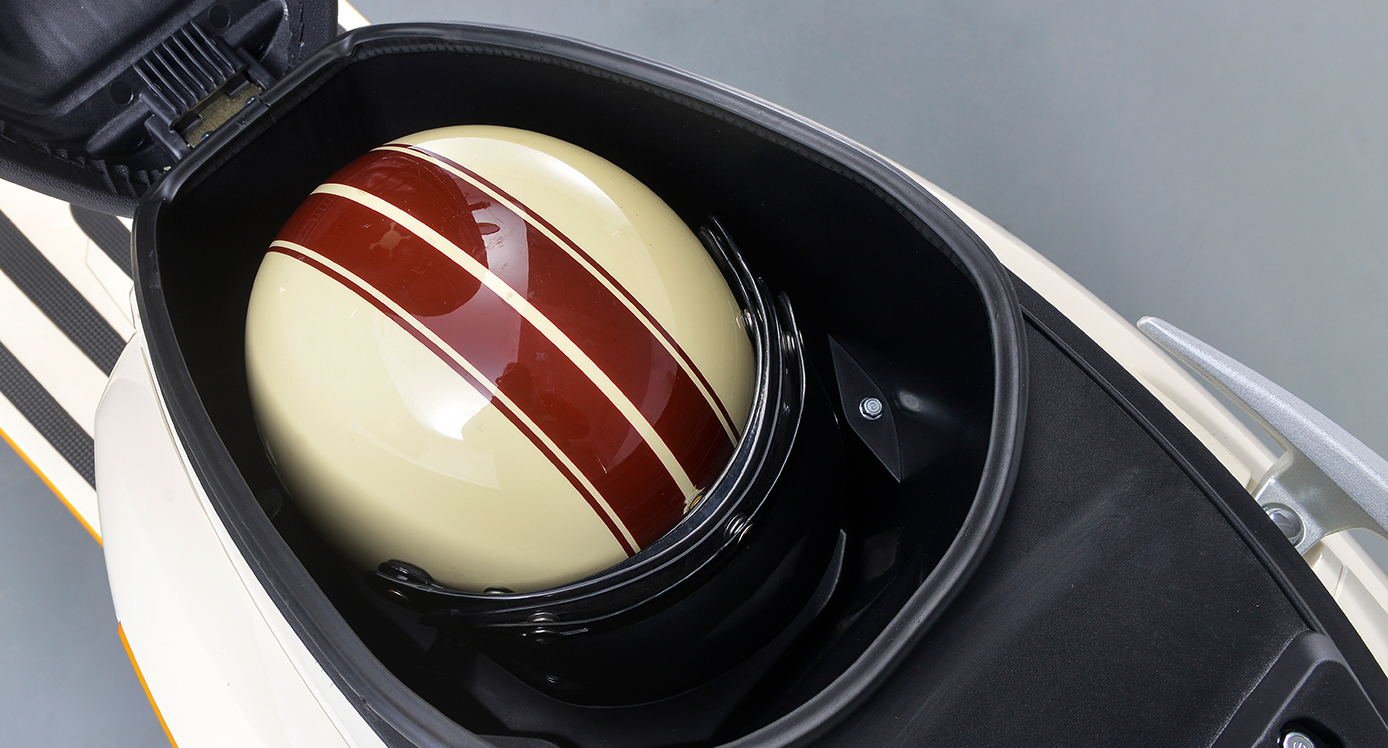

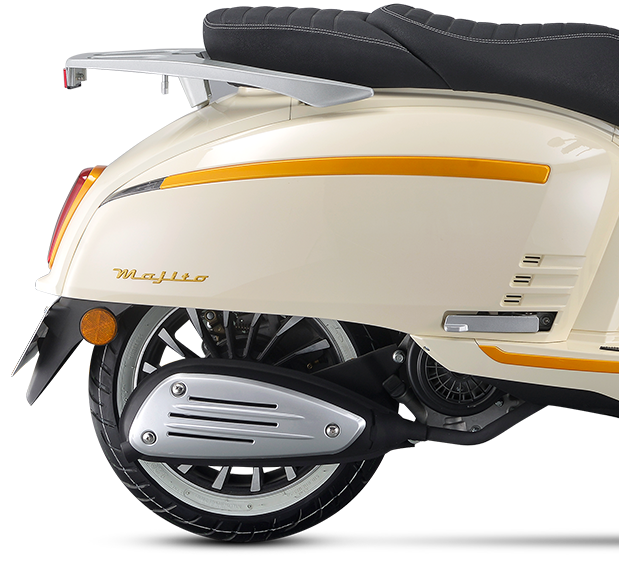

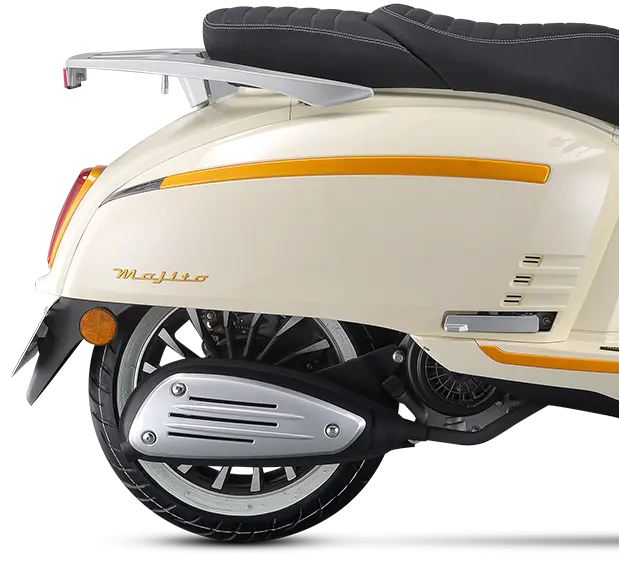

The oversized rear glove box of the same class car can hold a helmet and a raincoat to hold your favorites.
.

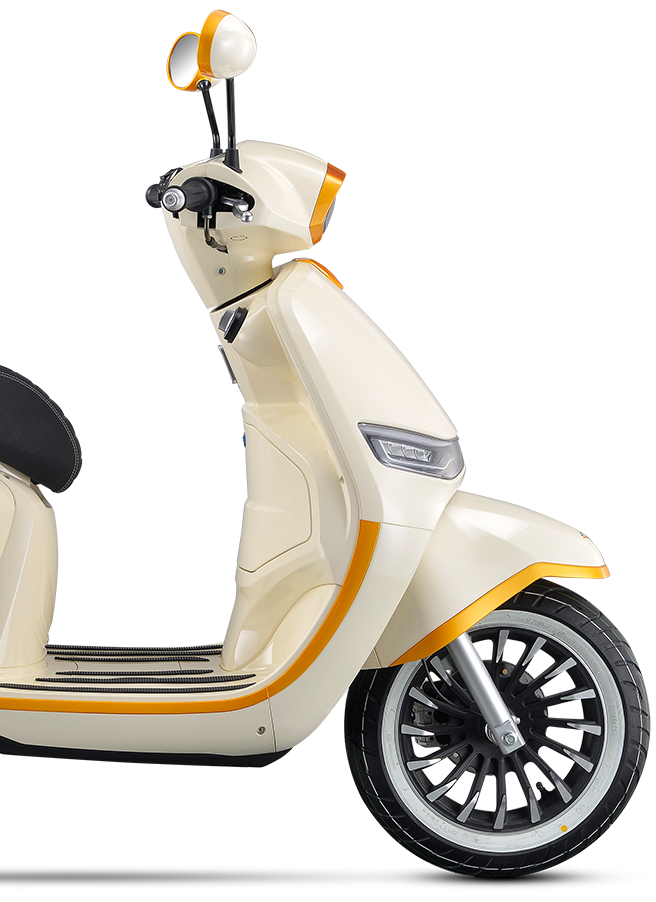

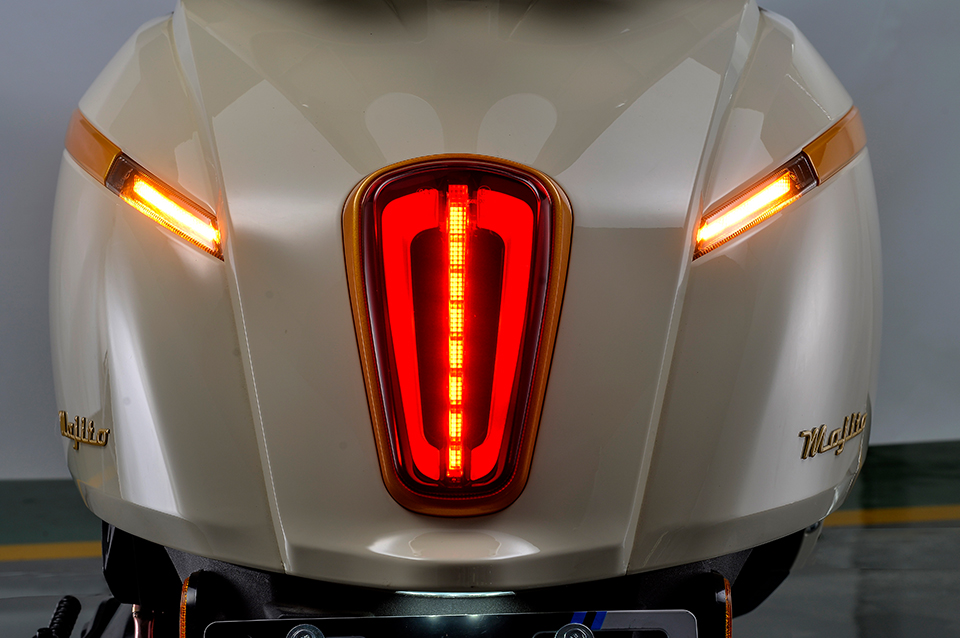

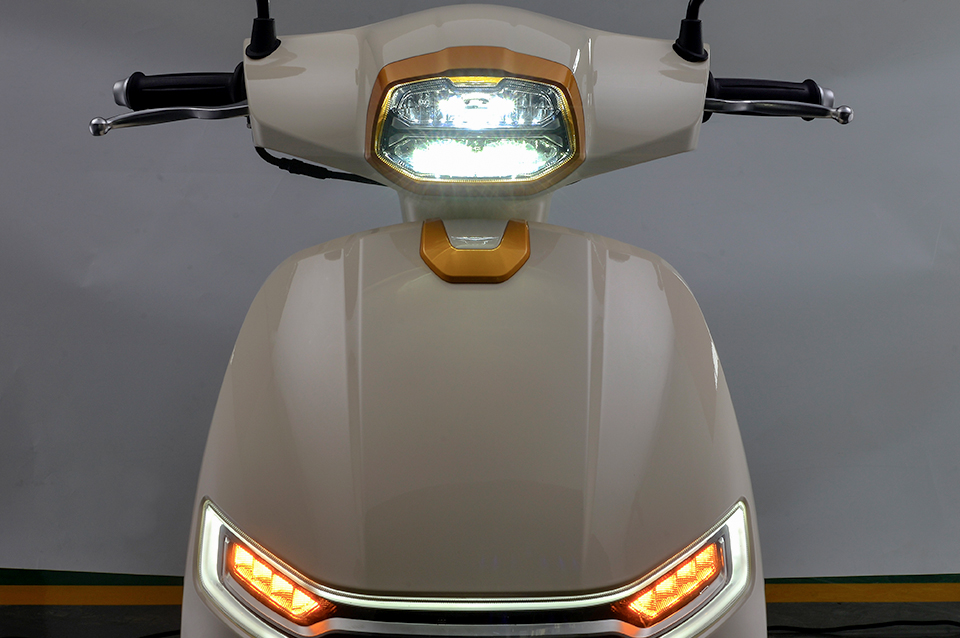

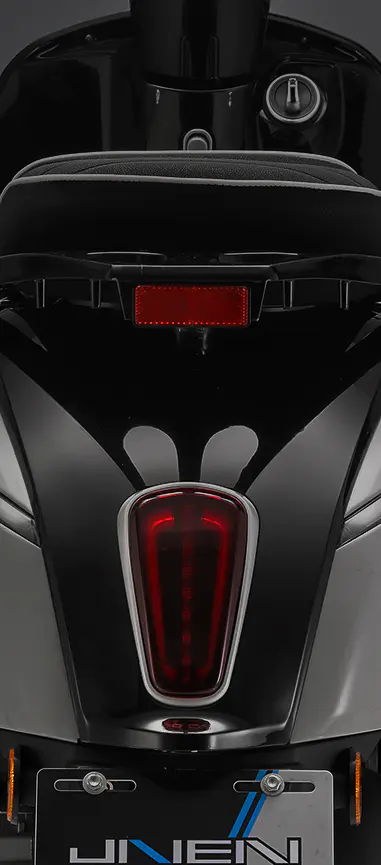

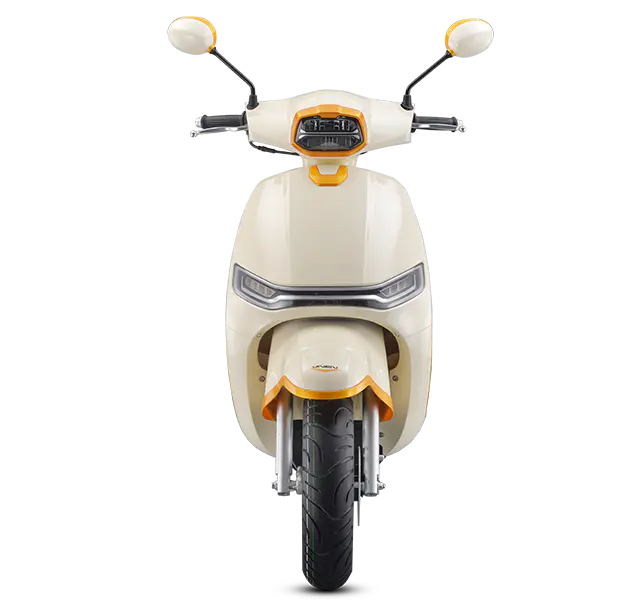

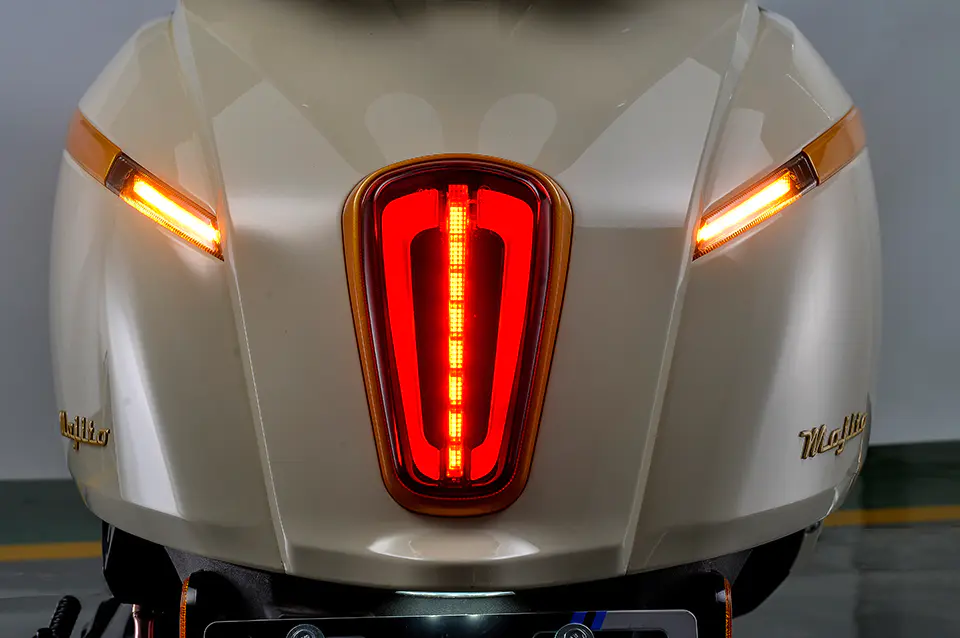

The whole vehicle lighting adopts LED light source, coupled with unique style, full of technology and futuristic sense. LED lights are not only beautiful, but also improve the recognition, fashion atmosphere, more personality, brighter and safer driving at night.

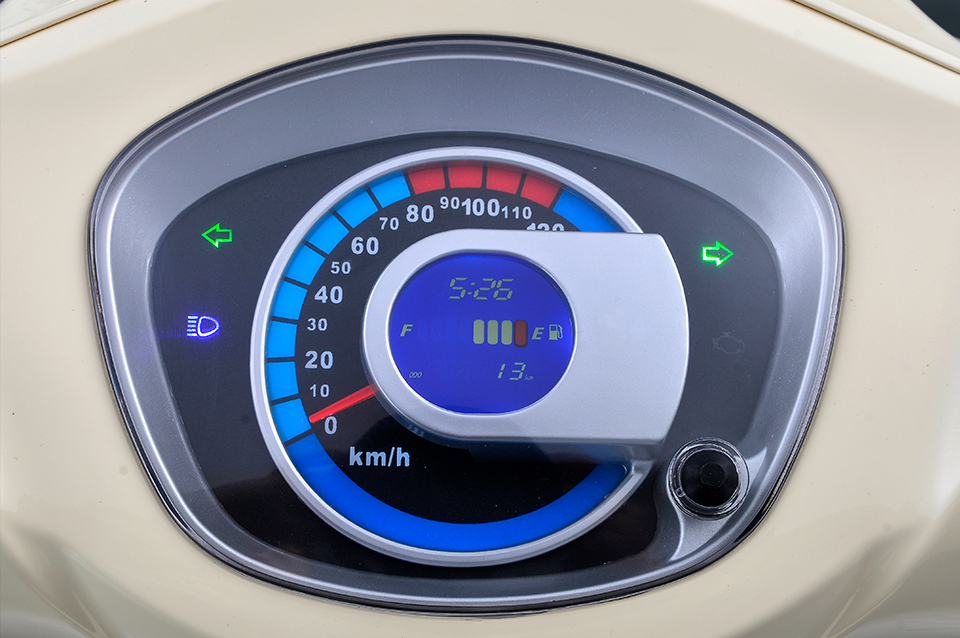

The design of the instrument panel is very fashionable and has both technological functions. The center of the pointer instrument is inlaid with a liquid crystal digital display screen, and many information such as fuel quantity, mileage and time are intelligently prompted.
The whole vehicle lighting adopts LED light source, coupled with unique style, full of technology and futuristic sense. LED lights are not only beautiful, but also improve the recognition, fashion atmosphere, more personality, brighter and safer driving at night.

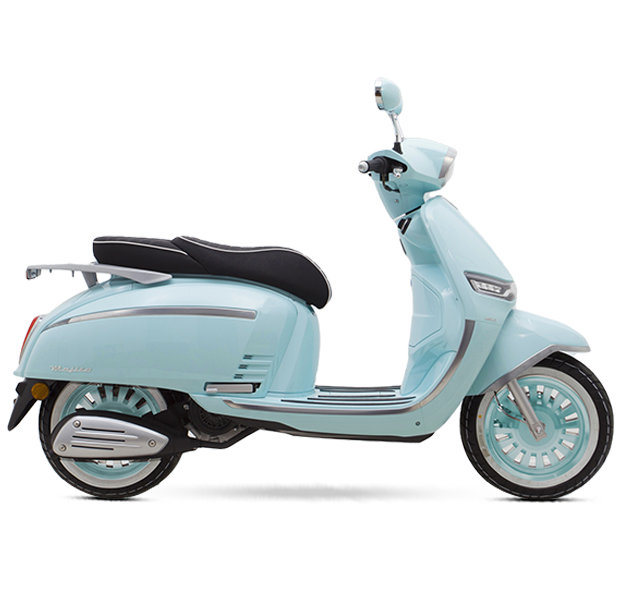

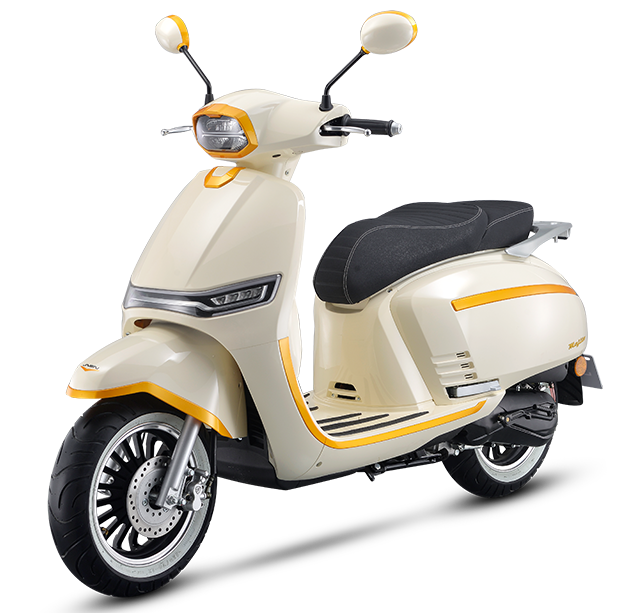

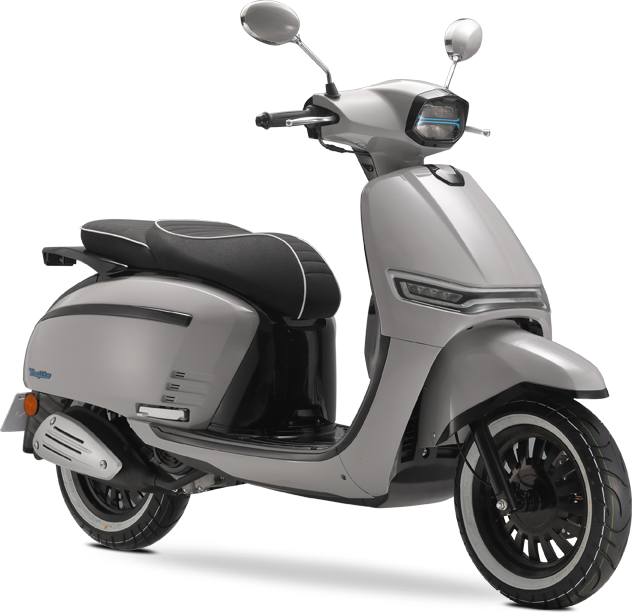

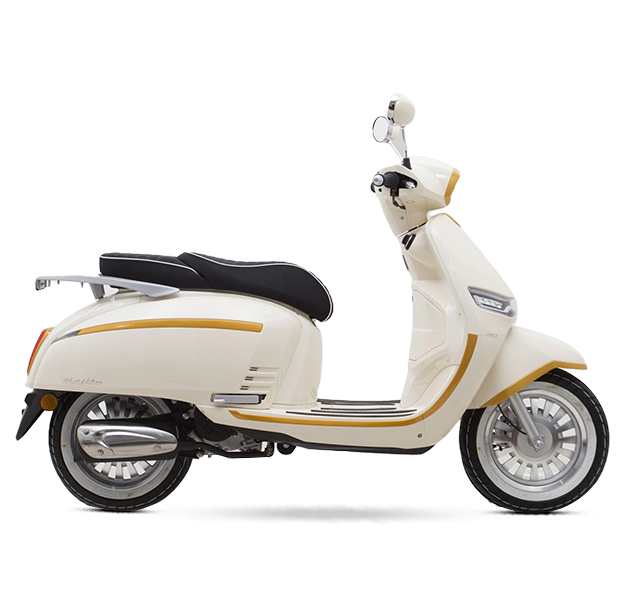

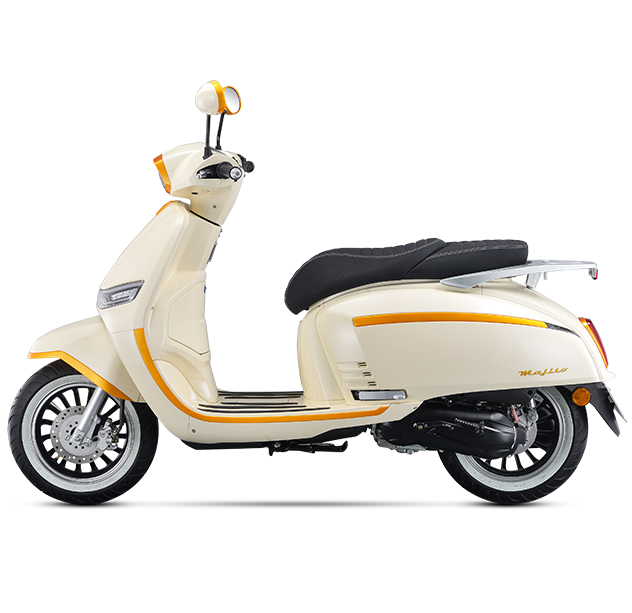

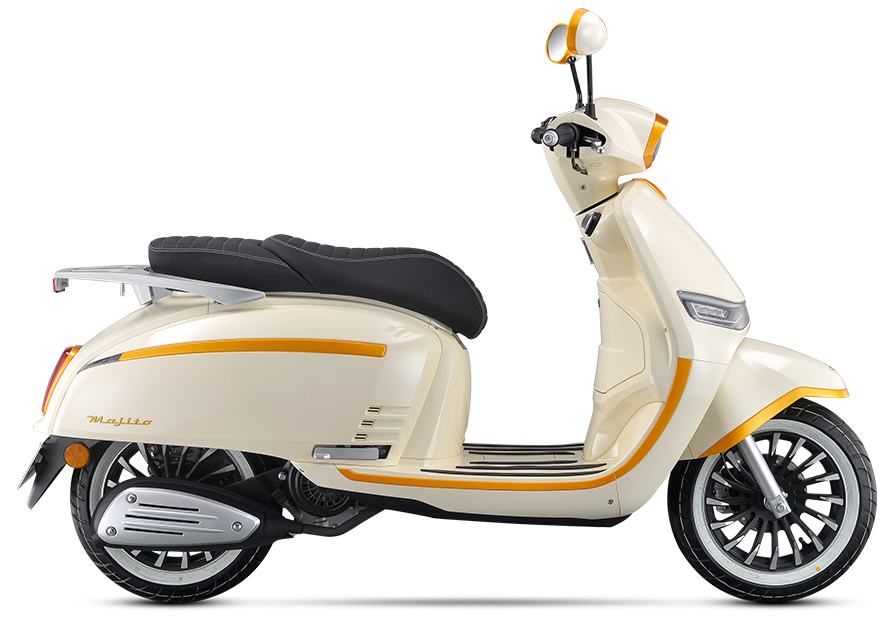

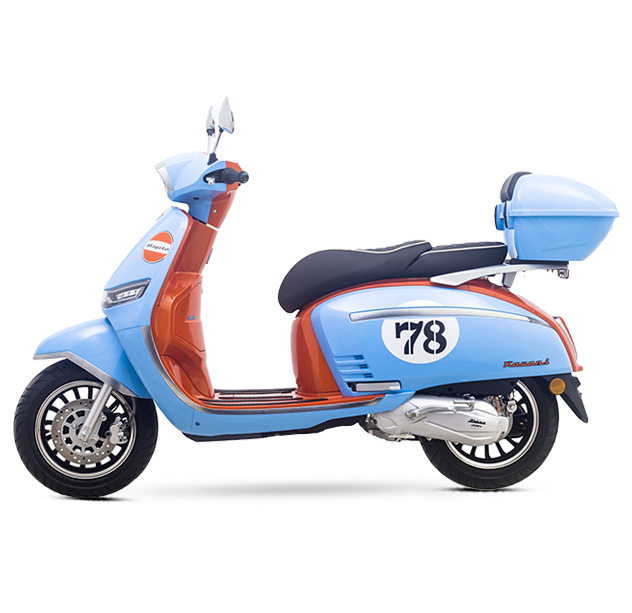

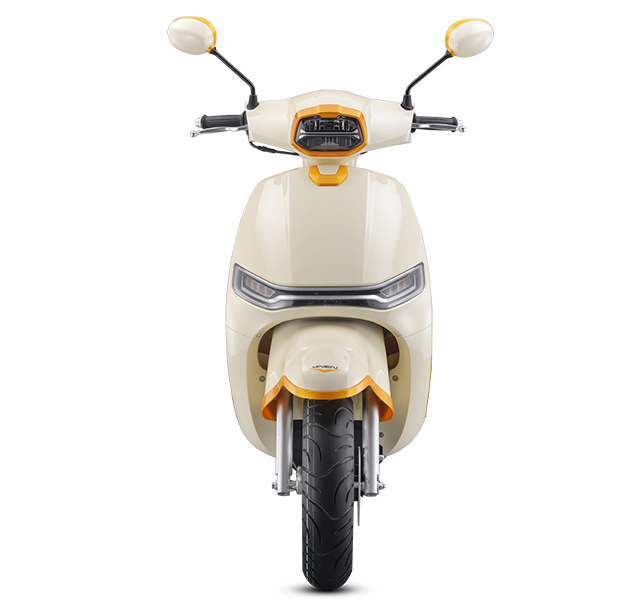

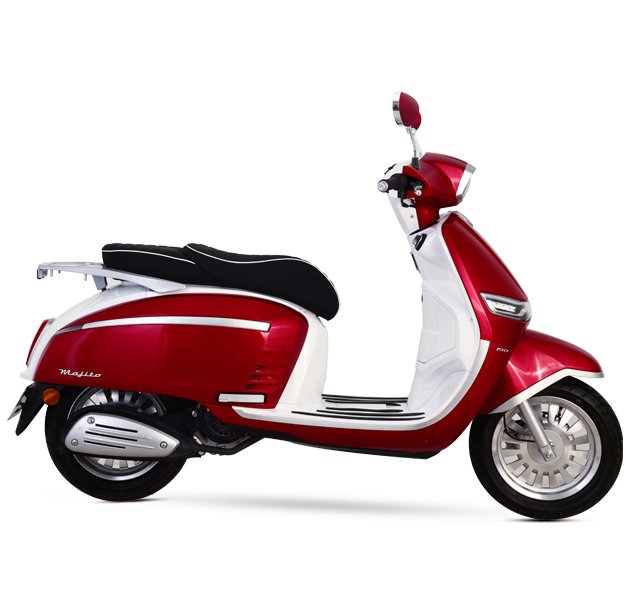

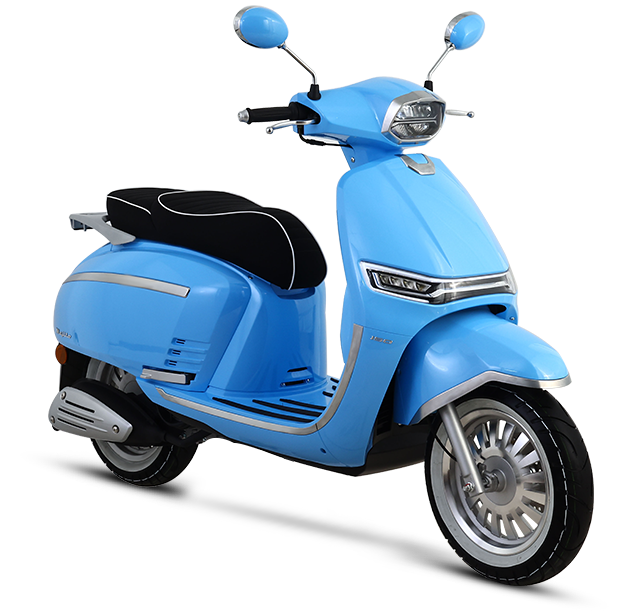

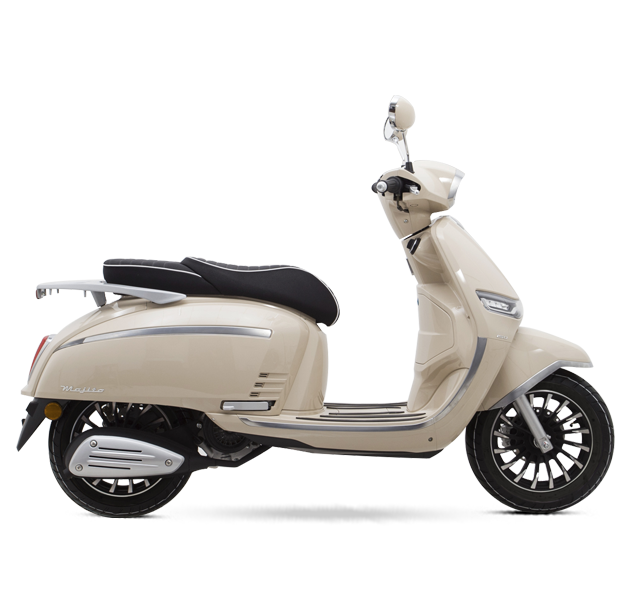

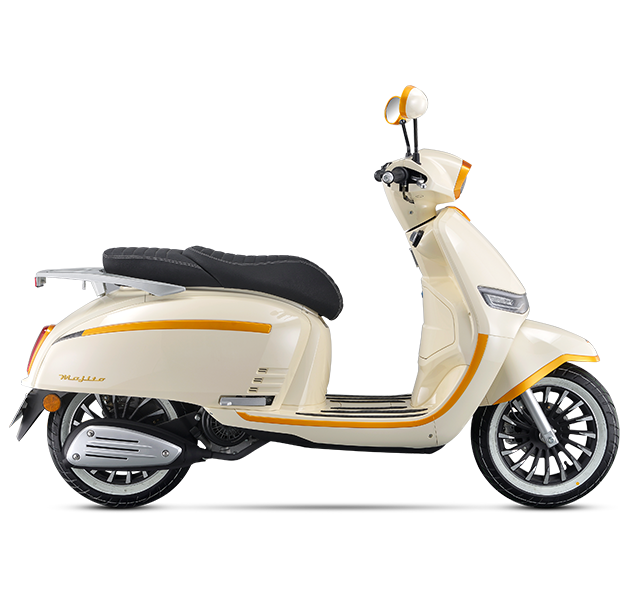

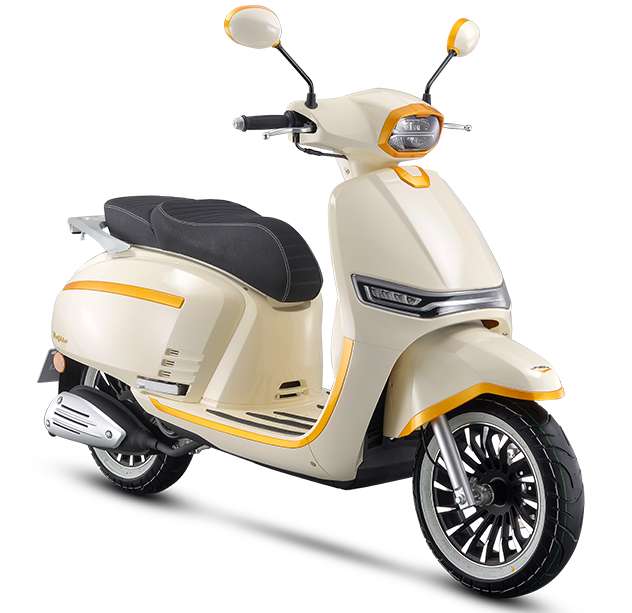

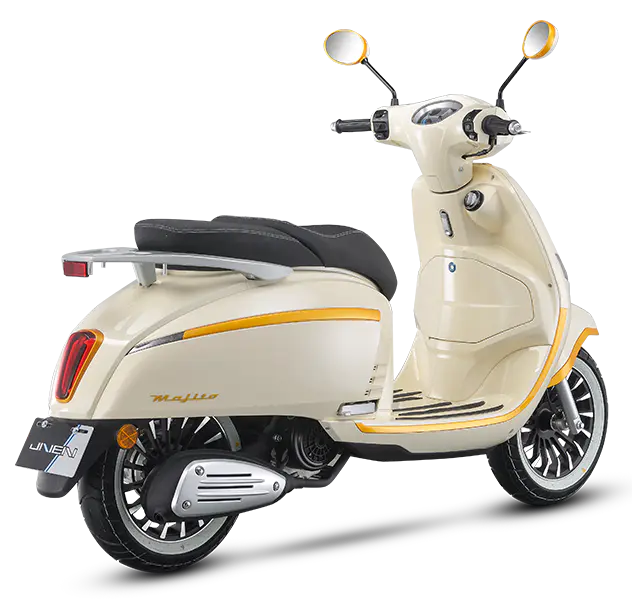

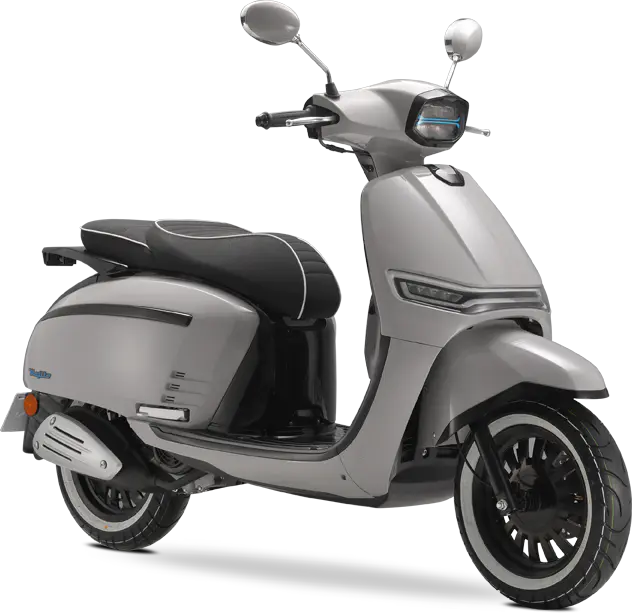

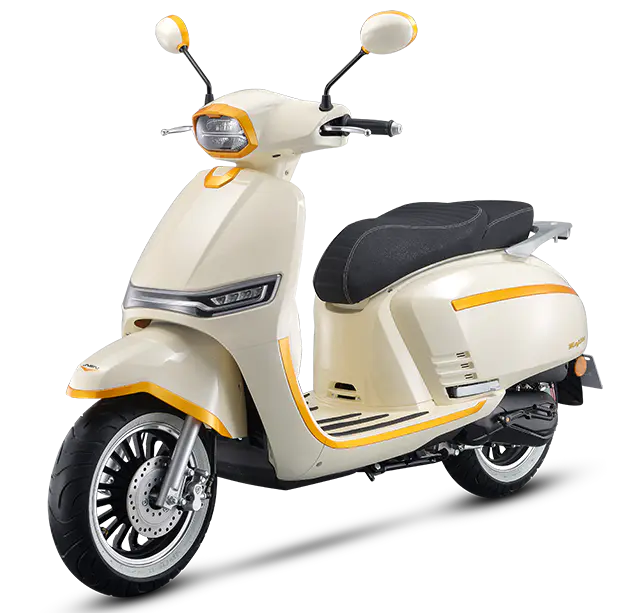

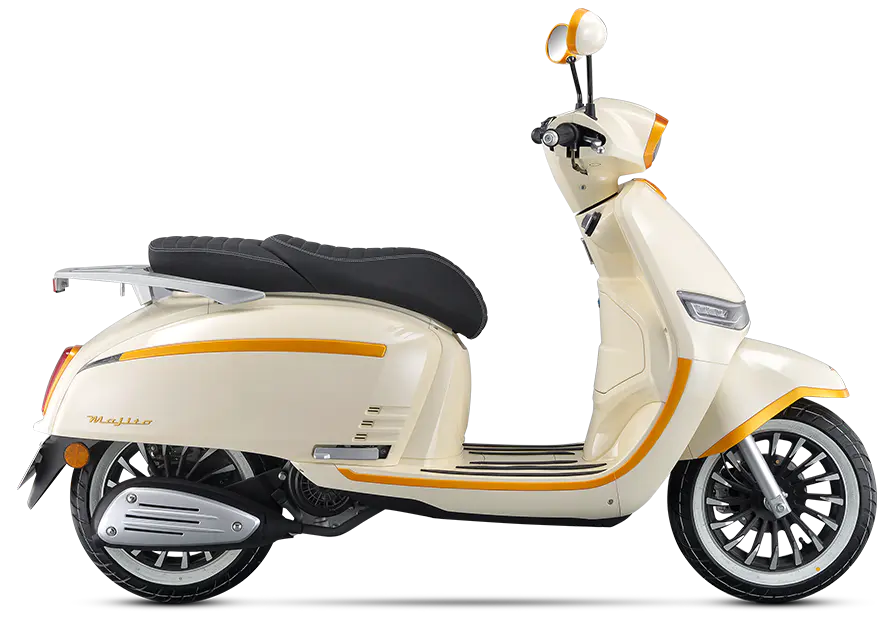

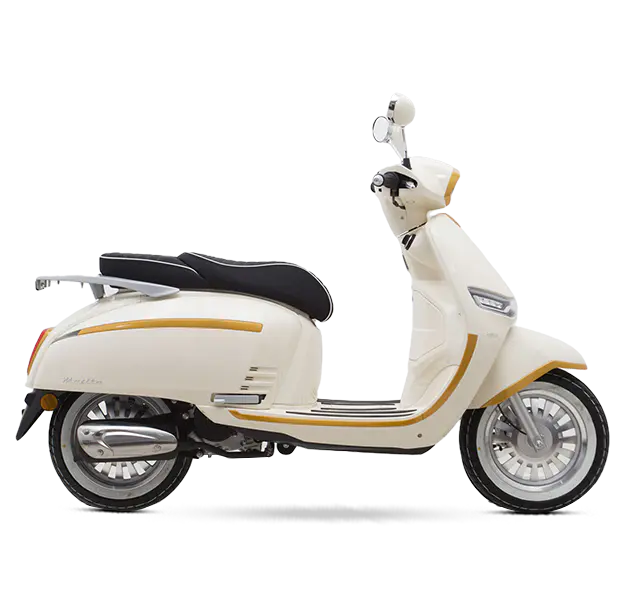

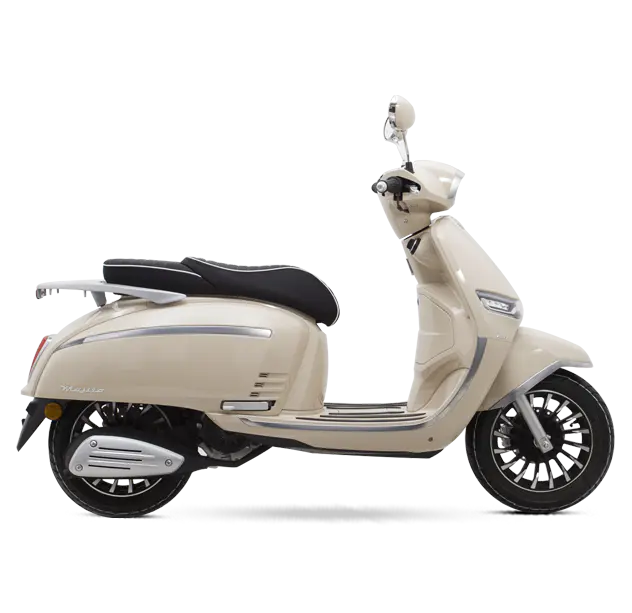

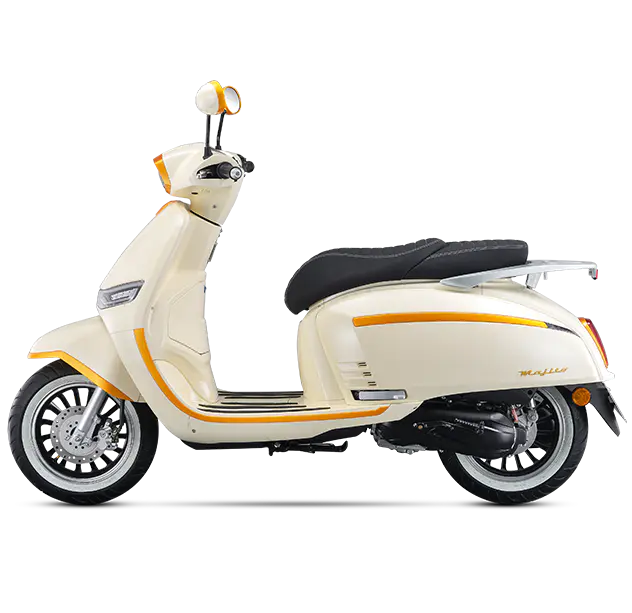

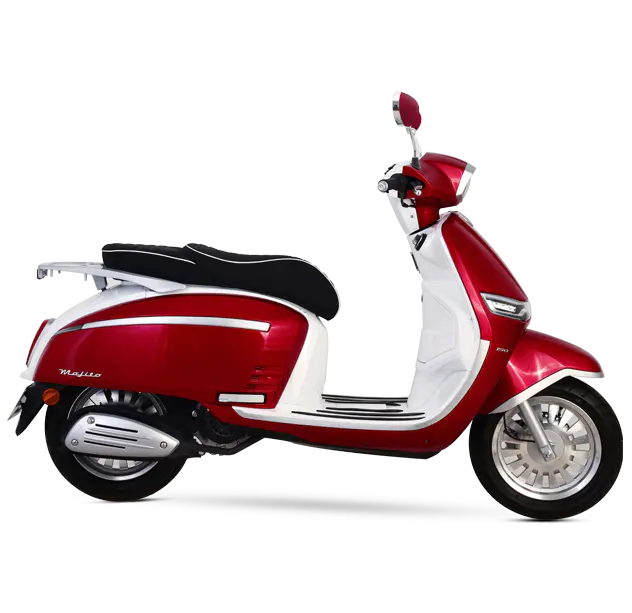

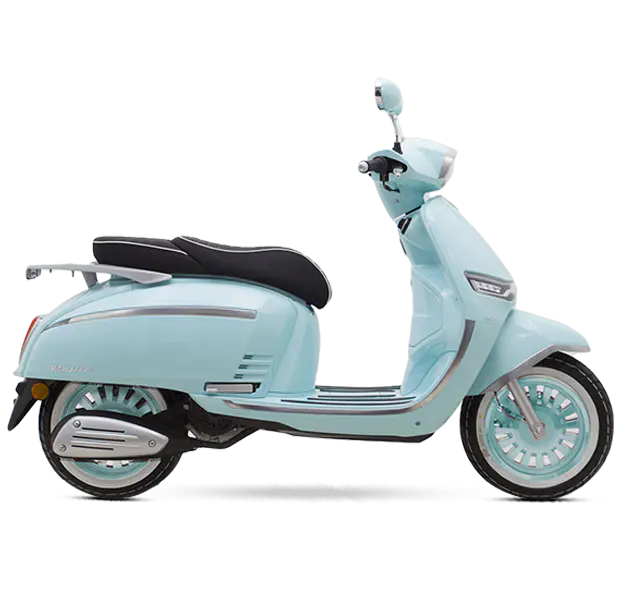

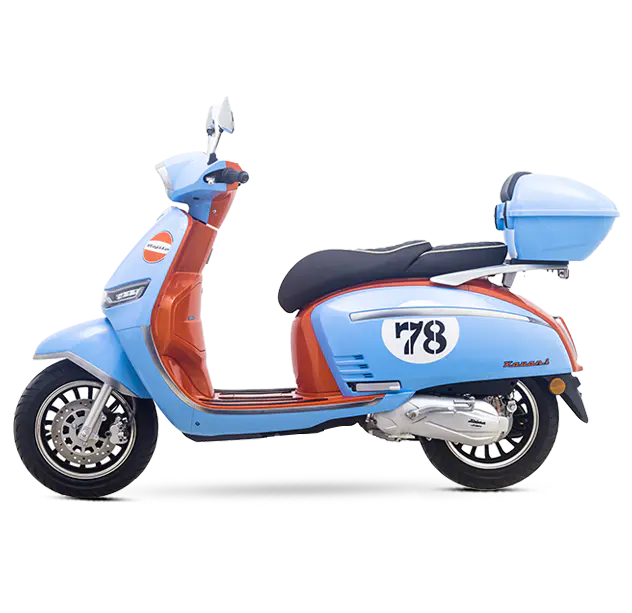

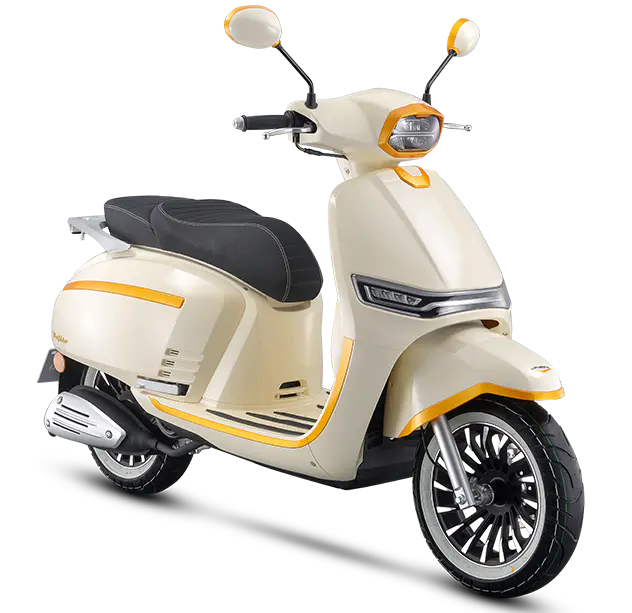

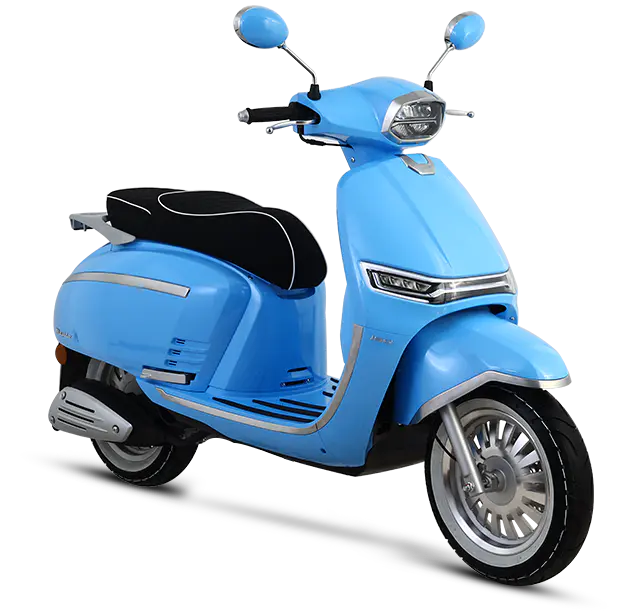

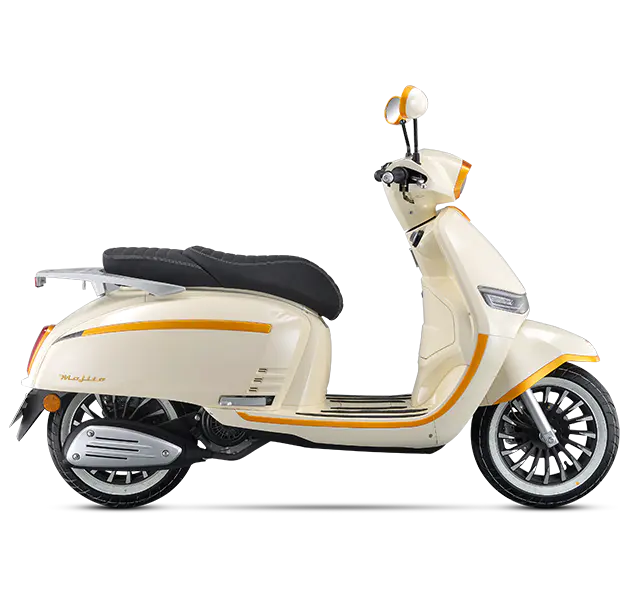

Mojito, with a new appearance, a very modern streamlined shape, ABS plastic parts of the whole car, fashionable and popular color matching and chrome decorative strips, brought him a dazzling light. The dynamic design has injected a lot of sports elements into this strong retro-style vehicle. Come on stage, bring your own highlights!
project | 50cc | 125cc | 150cc |
Dimensions | 1895×680×1180 | 1895×680×1180 | 1895×680×1180 |
wheelbase | 1370 | 1360 | 1360 |
Ground clearance | 110 | 130 | 130 |
net weight | 104 | 107 | 107 |
load | 75 | 150 | 150 |
top speed | ≤45 | ≤80 | ≤85 |
Economic fuel consumption | ≤1.9 | ≤2.8 | ≤2.8 |

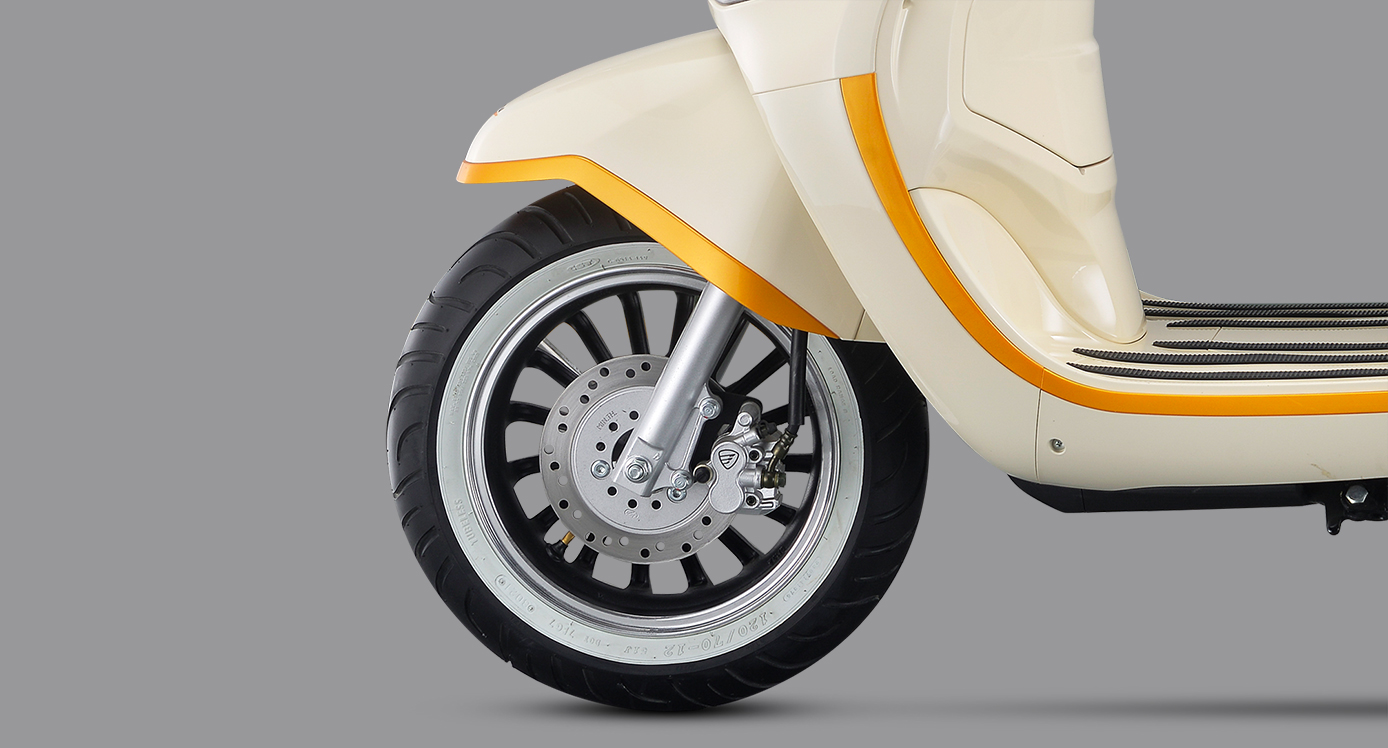

Braking method (front and rear) | front disc rear drum | Front disc rear drum Front disc rear disc | Front disc rear drum Front disc rear disc |
Brake disc diameter | 185 | 185 220 | 185 220 |
Brake drum diameter | 110 | 130 220 | 130 220 |
Tire size (front and rear) |
120/70-12
120/70-12
|
120/70-12
120/70-12
|
120/70-12
120/70-12
|
Fuel tank capacity | 5.8L/5.6L | 5.8L/5.6L | 5.8L/5.6L |
Battery Specifications | 12V 7Ah | 12V 7Ah | 12V 7Ah |
Bore*stroke | 39.0×41.4 | 52.4×57.8 | 57.4×57.8 |
Maximum power | 2.7/7500 | 5.2/7500 | 5.8/7500 |
maximum torque | 2.8/5500 | 7.5/6000 | 8.3/6000 |
compression ratio | 10.4:1 | 9.2:1 | 10.3:1 |
cooling method | air cooling | air cooling | air cooling |
Lubrication method | splash | splash | splash |
transfer method | infinitely variable speed | infinitely variable speed | infinitely variable speed |
Start method | Foot start/electric start | Foot start/electric start | Foot start/electric start |
Fuel supply method (carburetor/EFI) | CDI/ECU | CDI/ECU | CDI/ECU |
