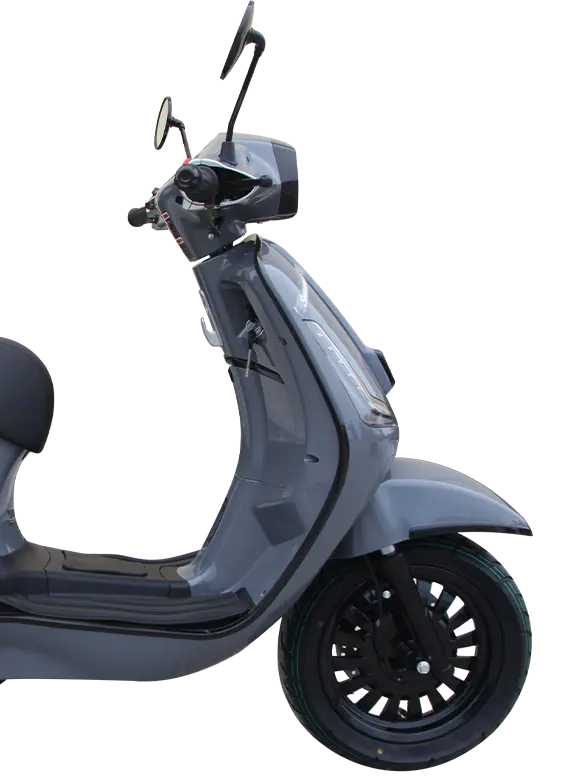

Tool Box and USB Socket

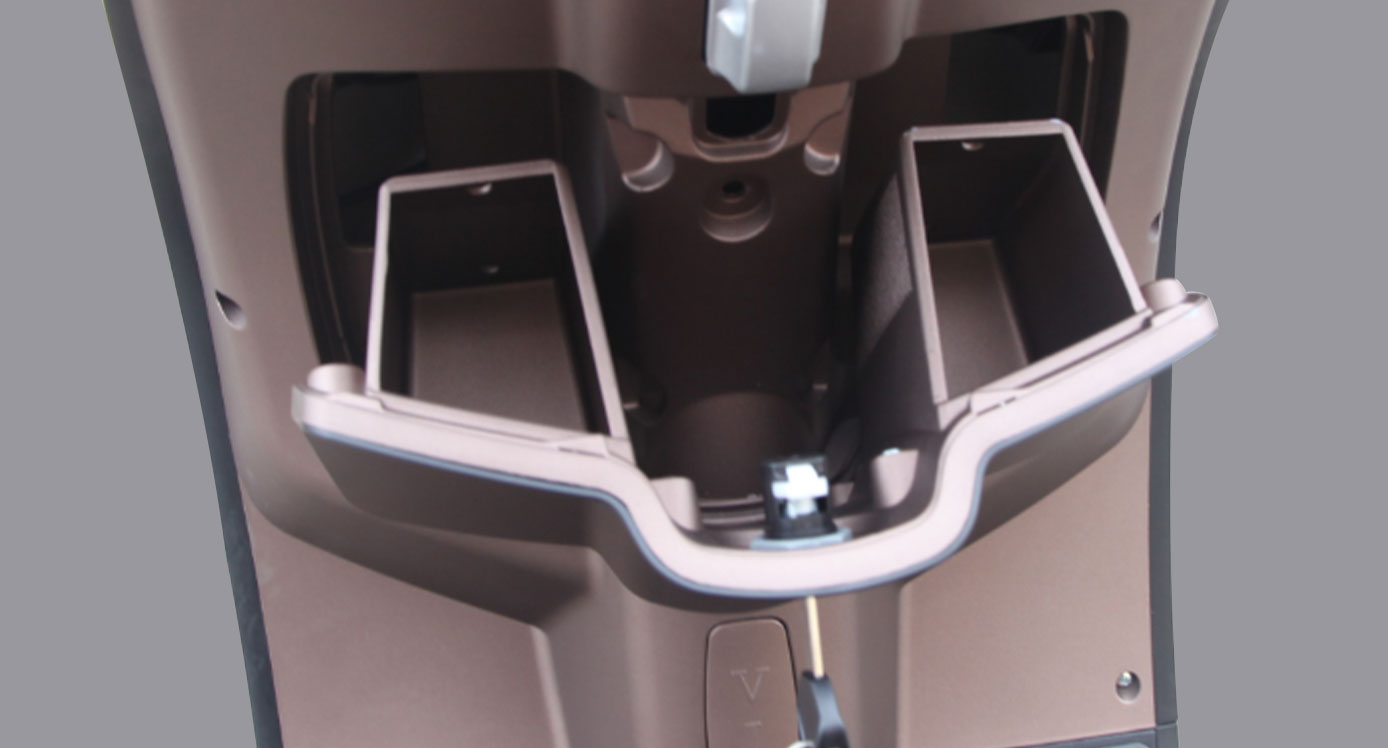

Large footrest room for stretching the torso and feet. With robust hooks, the front covered storage box securely stores your items. Its accessible power outlet allows you to charge your smartphone while riding.
Large footrest room for stretching the torso and feet. With robust hooks, the front covered storage box securely stores your items. Its accessible power outlet allows you to charge your smartphone while riding.
High-performance brake system, good braking performance, steady and dependable.

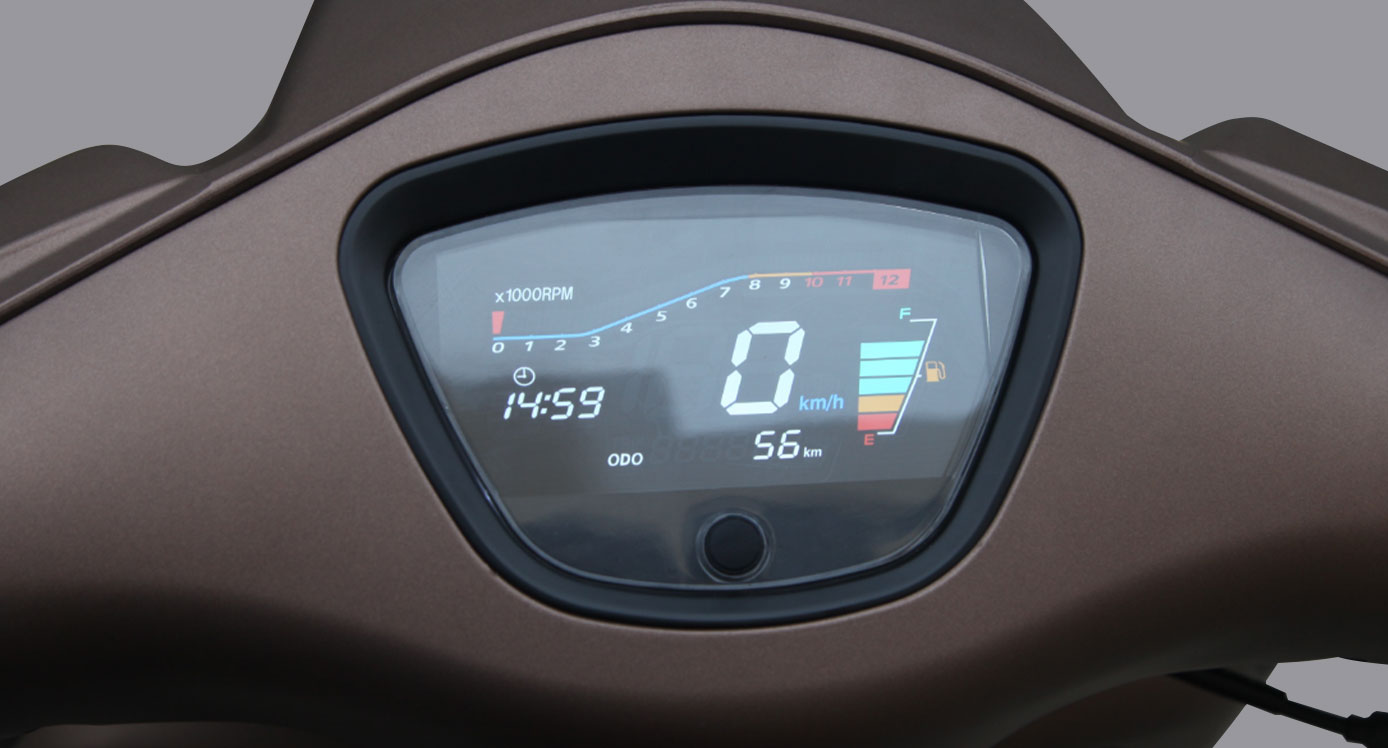

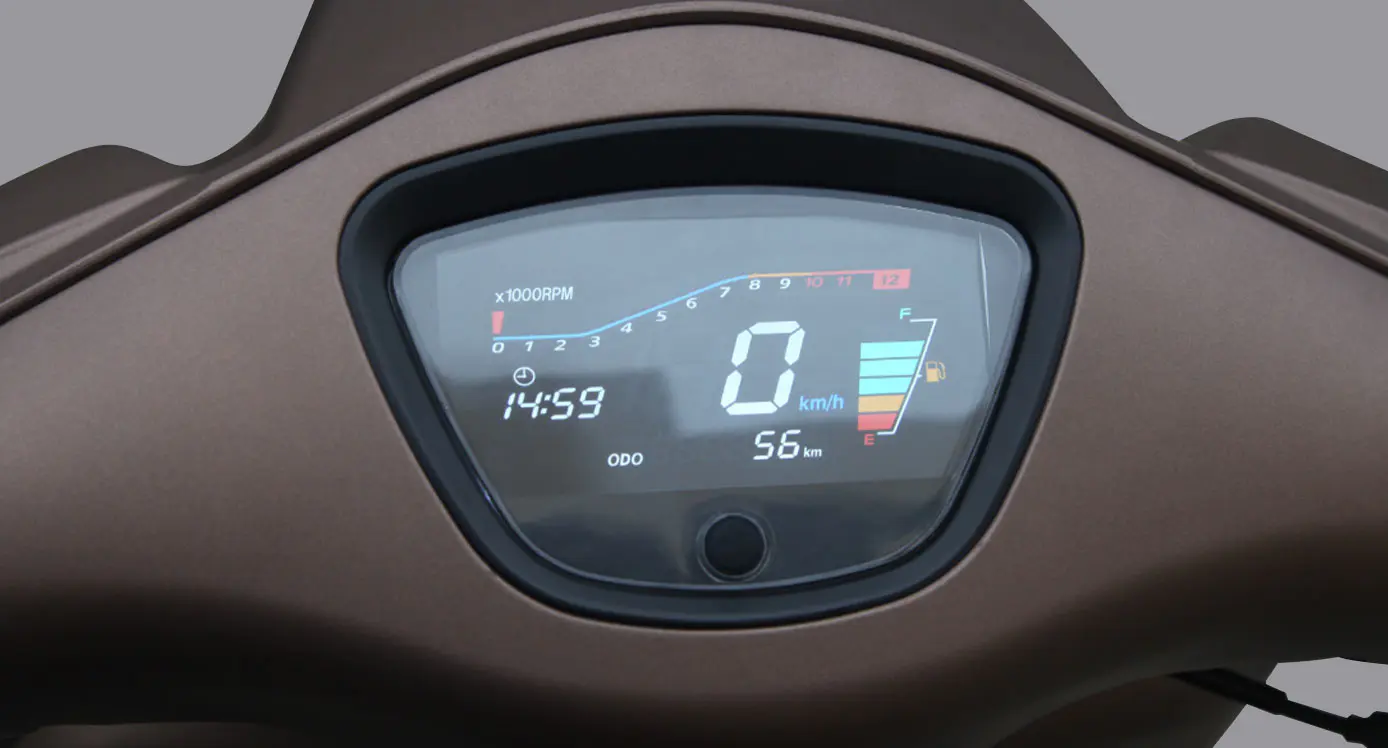

Refined instrument panel, simple and elegant shape, freshly increased fault display light, access to a multitude of technical and operational data, driving conditions are clear at a glance.

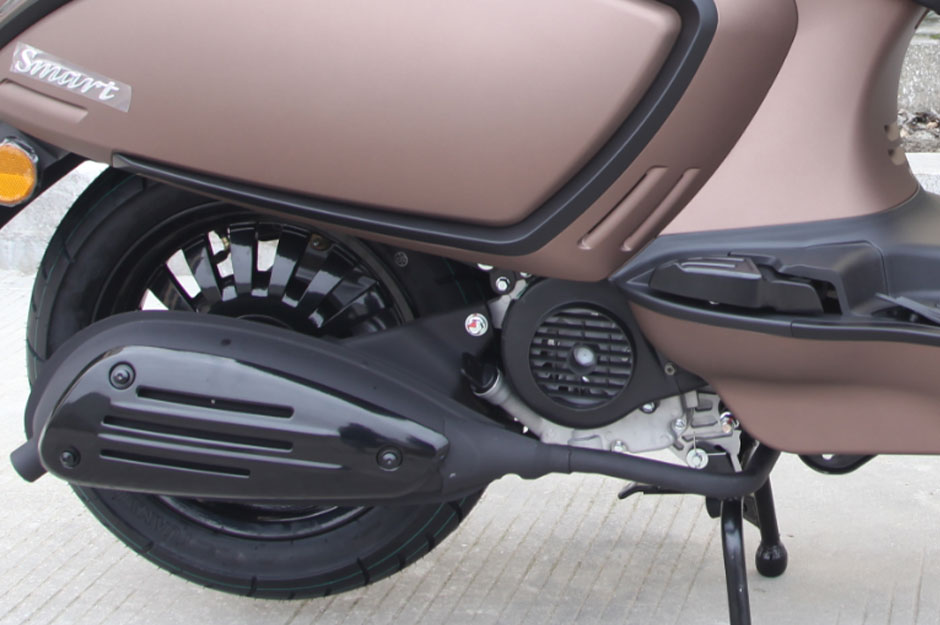

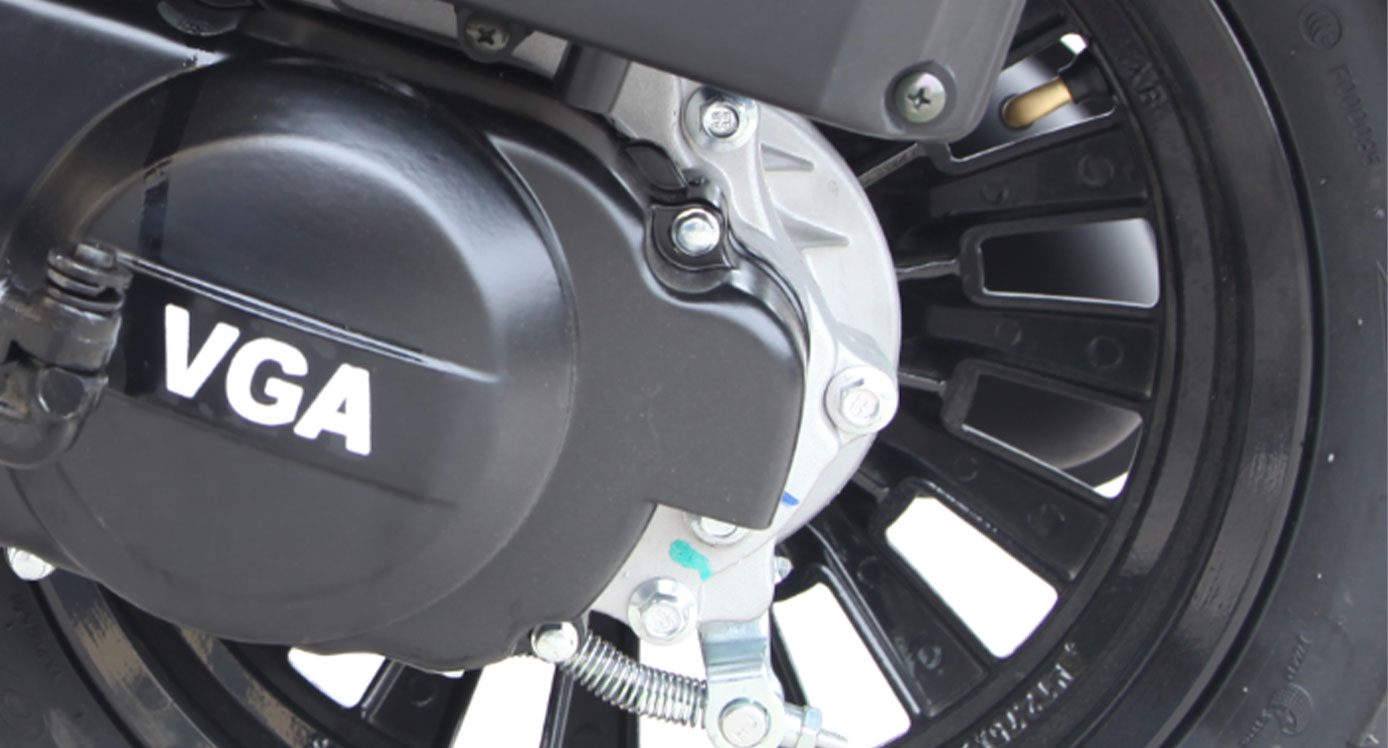

Classic aluminum ornamental cover with a strong sense of motion. Which can use double catalysts that meets Euro 5 emission requirements.

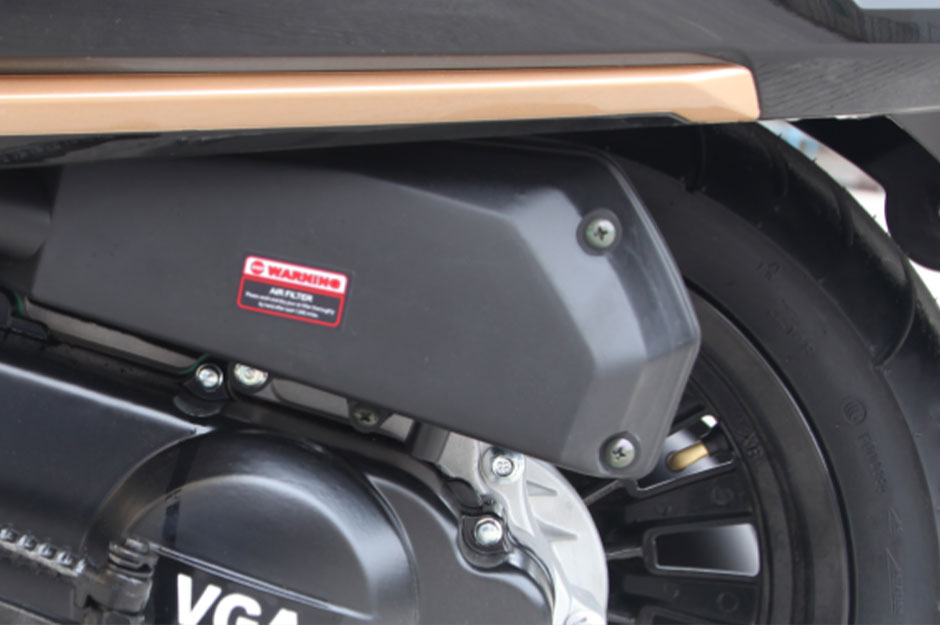

Air filter and engine side cover both use high-level air intake, which effectively reduces pollutants in engine air intake and extends engine service life.

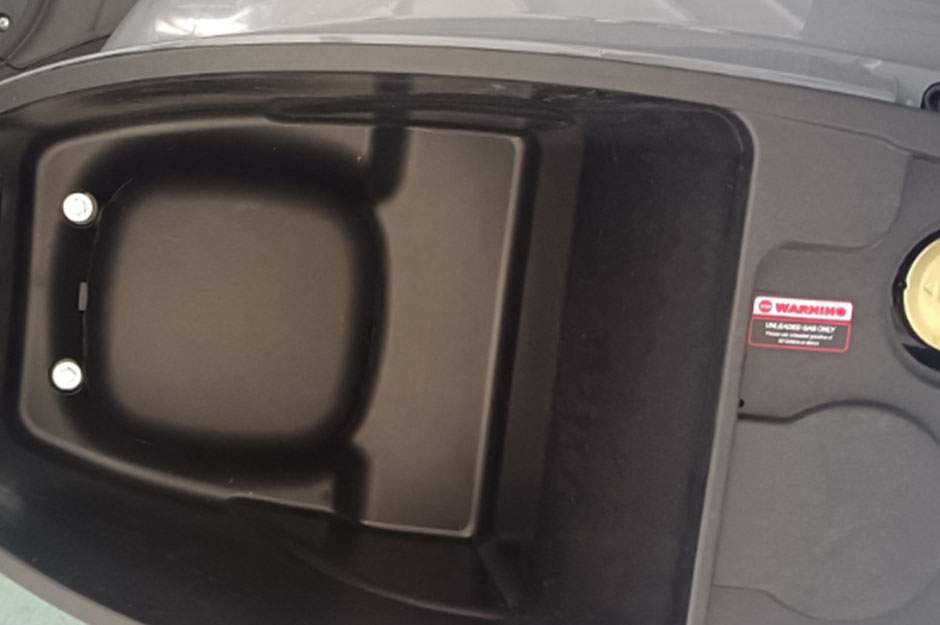

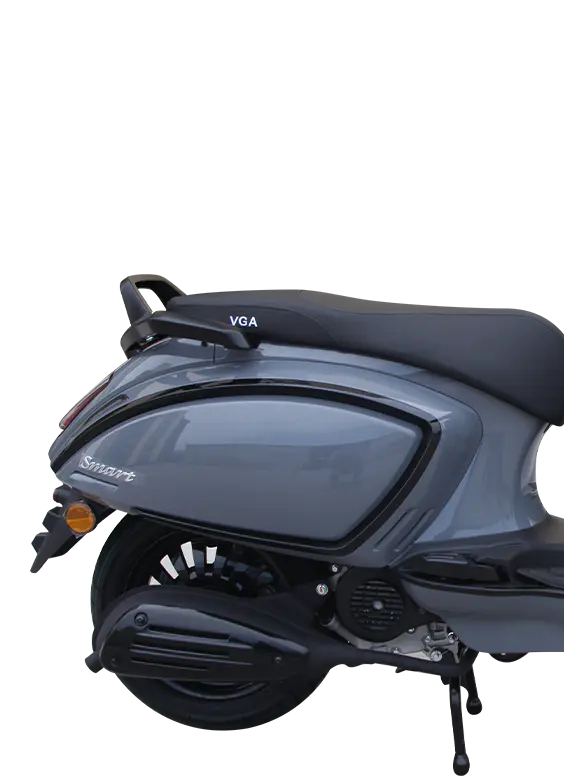

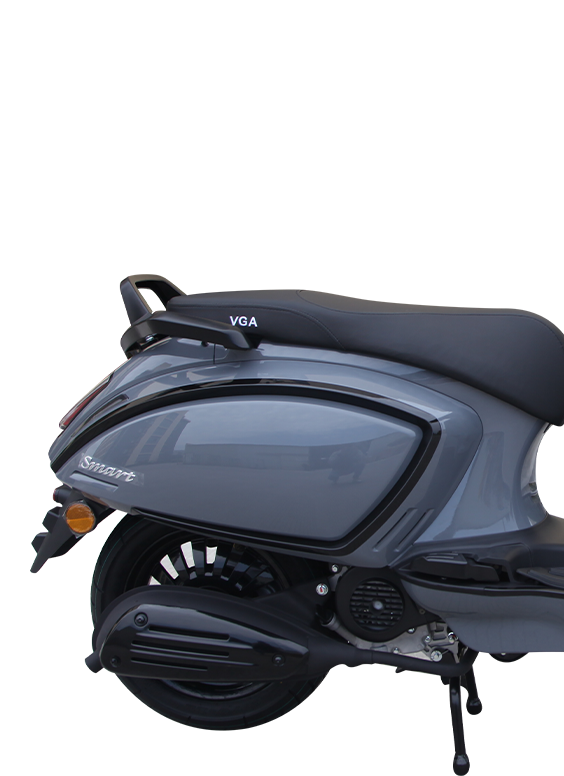

Large storage space, to meet the needs of traveling storage.
Components Status 50CC Engine comp; Youli Carburetor; Torch sparkle plug; Bando V-belt; Brake: F:disc,R:Drum; Guyue battery; Digital speedometer; Full set LED; Alumium wheel; Tubless tyre; Rear single shock absorber; USB socket
Commercial Name | Heben 50CC |
Dimensions | 1860 * 680 *1100 mm |
Brake system | F:Disc ; R:Drum |
Wheel Base(mm) | 1350 mm |
Ground Clearance(mm) | 130 MM |
Net Weight (kg) | 96 KG |
Displacement | 49.4 ml |
Engine type | JN1P39QMB |
Engine Style | 50 cc,4 stroke, air-cooling |
Bore * Stroke | 39*41.4 mm |
Compression Ratio | 10.4:1 |
Max Power | 2.2KW/7500R/MIN |
Max Torque | 2.8N.M/5500R/MIN |
Ignition mode | C.D.I |
Lubrication mode | Pressure, splash |
Idel speed | 1700 ±100r/min |
Min fuel consumption | 367g/KW.h |
Starter | Electric and kick starter |
Brake Operation | Hand |
Front/Rear Tire | F :110/70-12 & R120/70-12 |
Wheel | F & R: MT 2.75*12 |
Battery | 12V 7AH |
Max Speed(km/h) | 45 KM |
Economic Fuel Consumption | ≤2.7L/100km |
Max Load(kg) | 150 |
Fuel Tank(L) | 5.4 L |
Packing in SKD (units) | 78 PCS / 40HQ iron frame + corrugated carton |
