project | 125cc | 150cc |
Dimensions | 1930×720×1140 | 1930×720×1140 |
wheelbase | 1330 | 1330 |
Ground clearance | 130 | 130 |
net weight | 108 | 108 |
load | 150 | 150 |
top speed | ≤85 | ≤85 |
Economic fuel consumption | ≤2.8 | ≤2.8 |

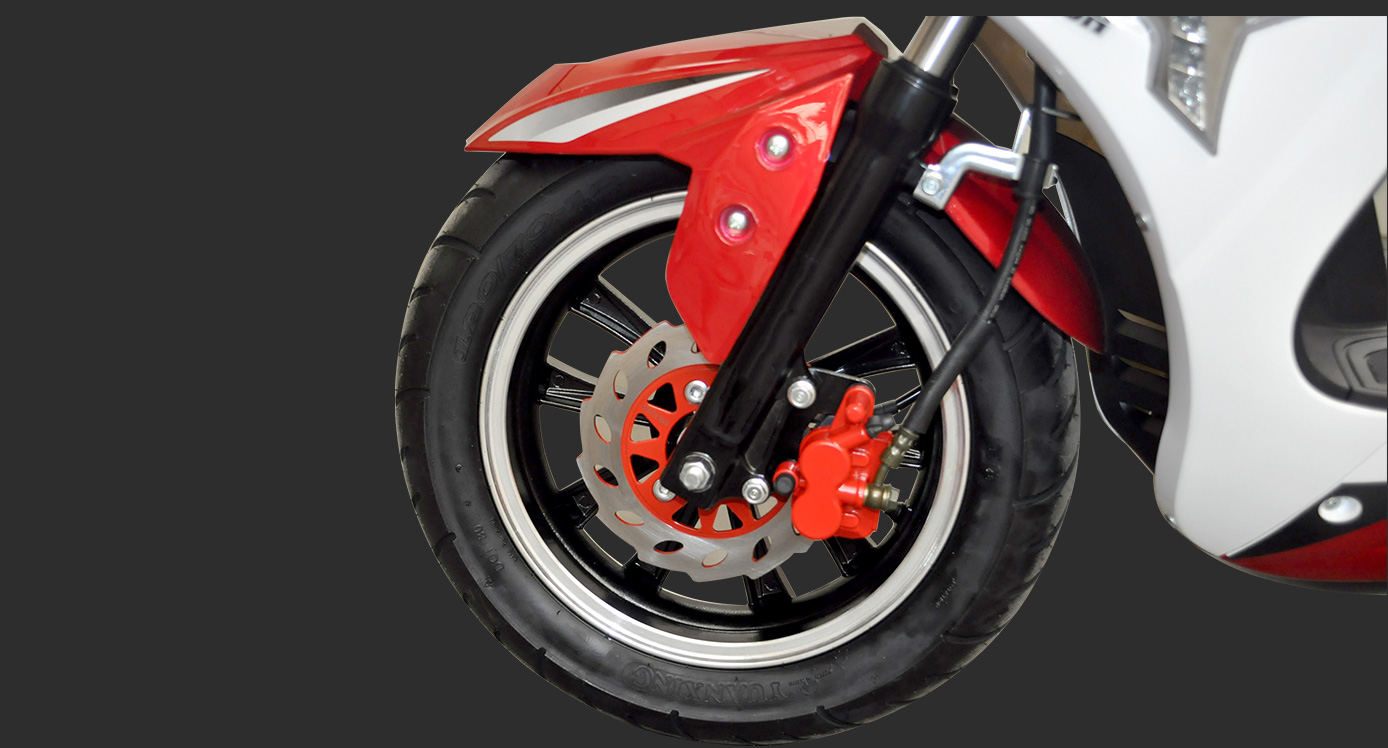

Braking method (front and rear) | front disc rear drum | front disc rear drum |
Brake disc diameter | 180 | 180 |
Brake drum/disc diameter | 130 | 130 |
Tire size (front and rear) |
120/70-12
120/70-12
|
120/70-12
120/70-12
|
Fuel tank capacity | 4.5L | 4.5L |
Battery Specifications | 12V 7Ah | 12V 7Ah |
Bore*stroke | 52.4×57.8 | 57.4×57.8 |
Maximum power | 5.2/7500 | 5.8/7500 |
maximum torque | 7.6/6000 | 8.3/6000 |
compression ratio | 9.2:1 | 10.3:1 |
cooling method | air cooling | air cooling |
Lubrication method | splash | splash |
transfer method | infinitely variable speed | infinitely variable speed |
Start method | Foot start/electric start | Foot start/electric start |
Oil supply method | CDI/ECU | CDI/ECU |
