Italian Fur Caterpillar Saddle

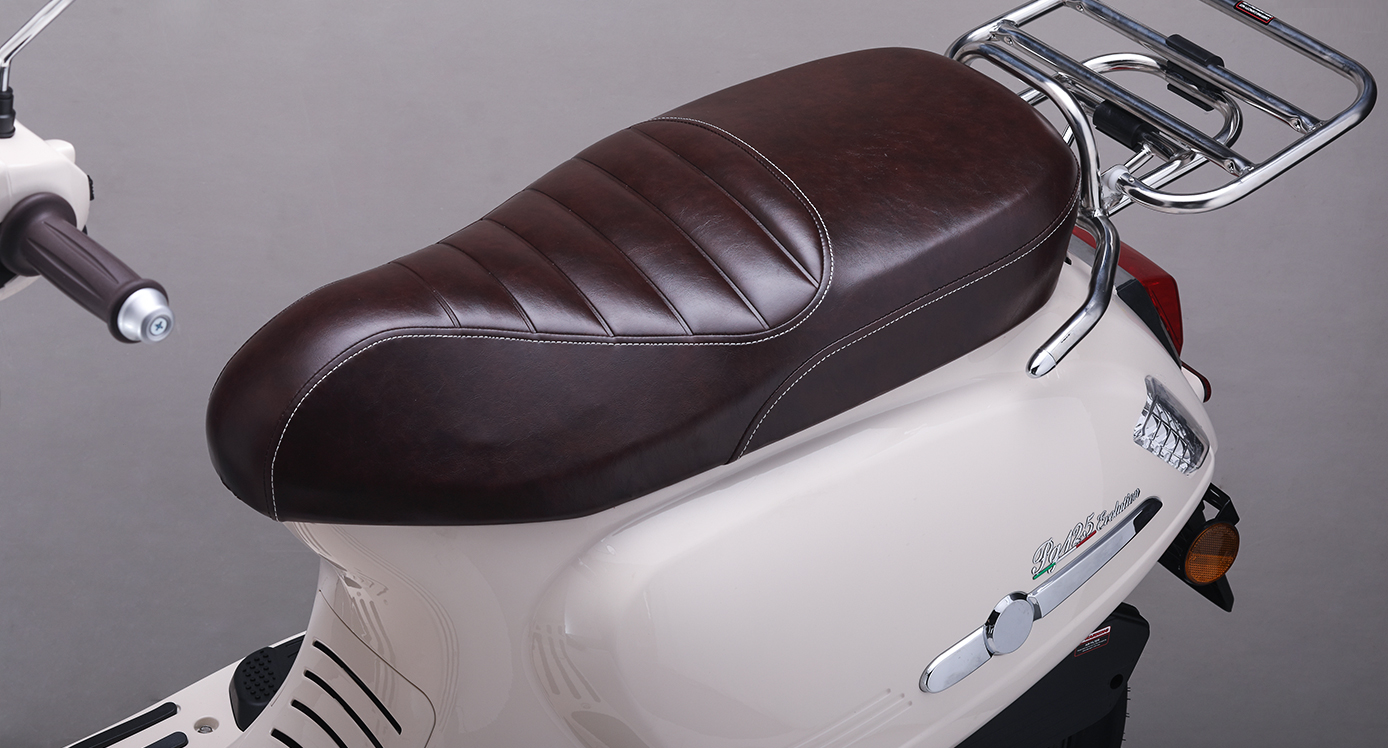

High resilience stitched lychee leather seat cushion, non-slip, strong resilience, long-term riding without deformation. The seat cushion is extended to 680MM, so even a family of three will not feel crowded.
High resilience stitched lychee leather seat cushion, non-slip, strong resilience, long-term riding without deformation. The seat cushion is extended to 680MM, so even a family of three will not feel crowded.

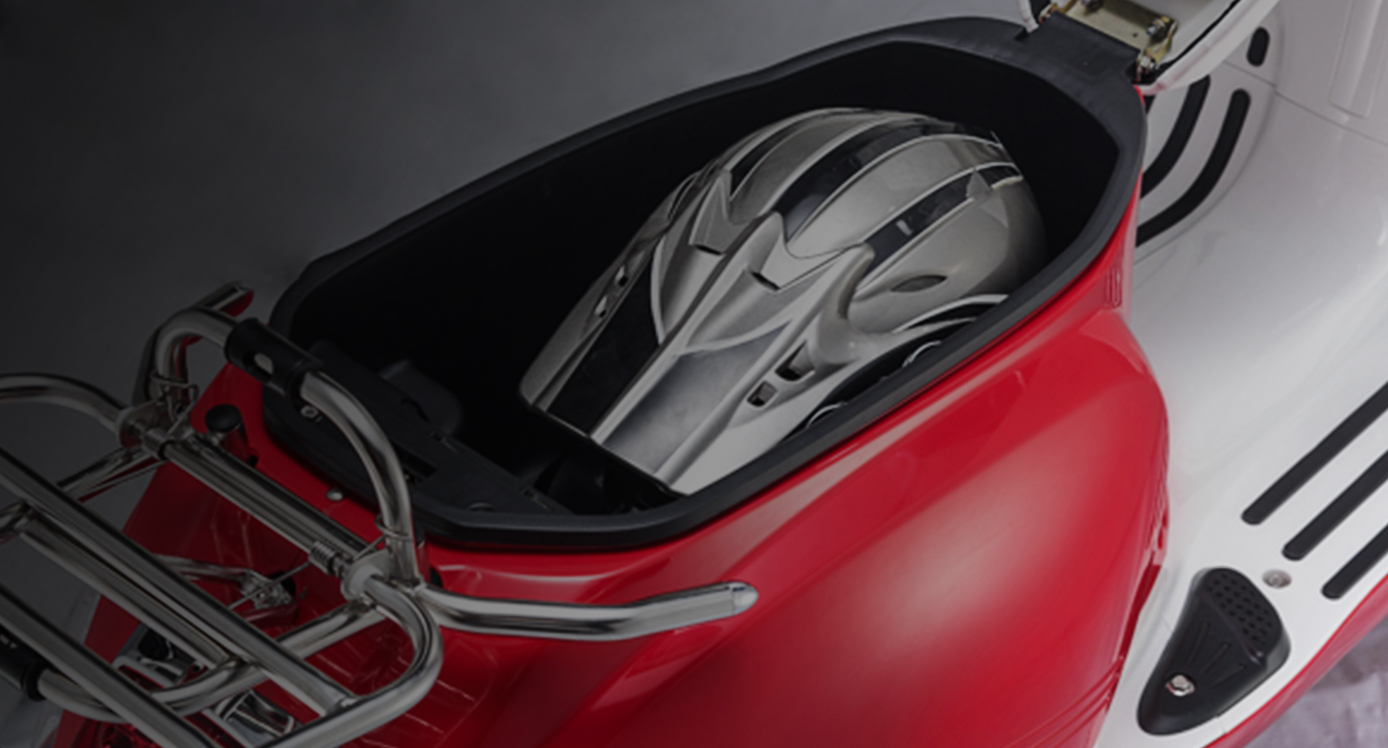

The oversized seat bucket has a flat storage space and high space utilization. With the front hook, it is easy to store helmets and daily necessities.

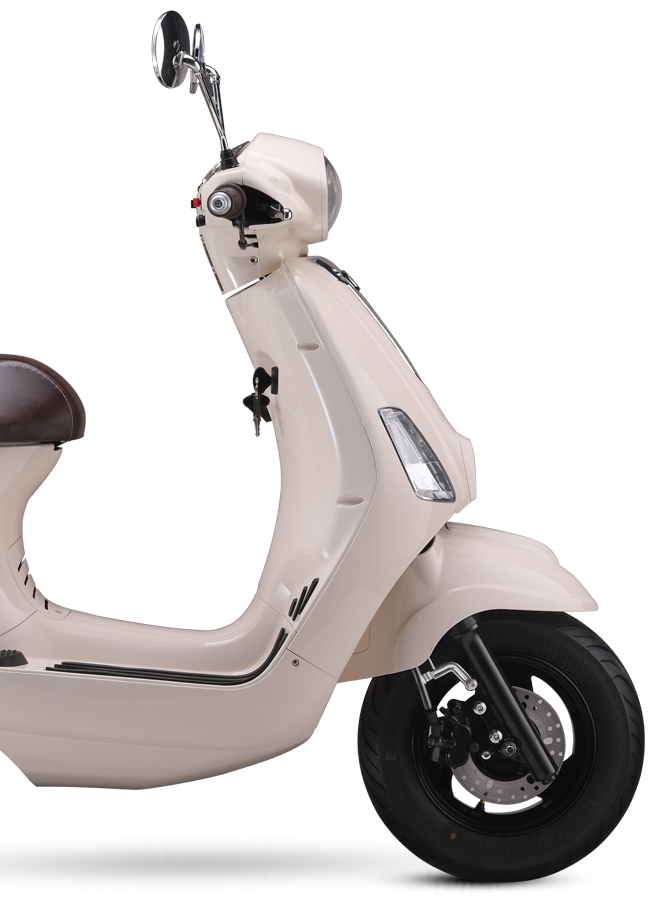

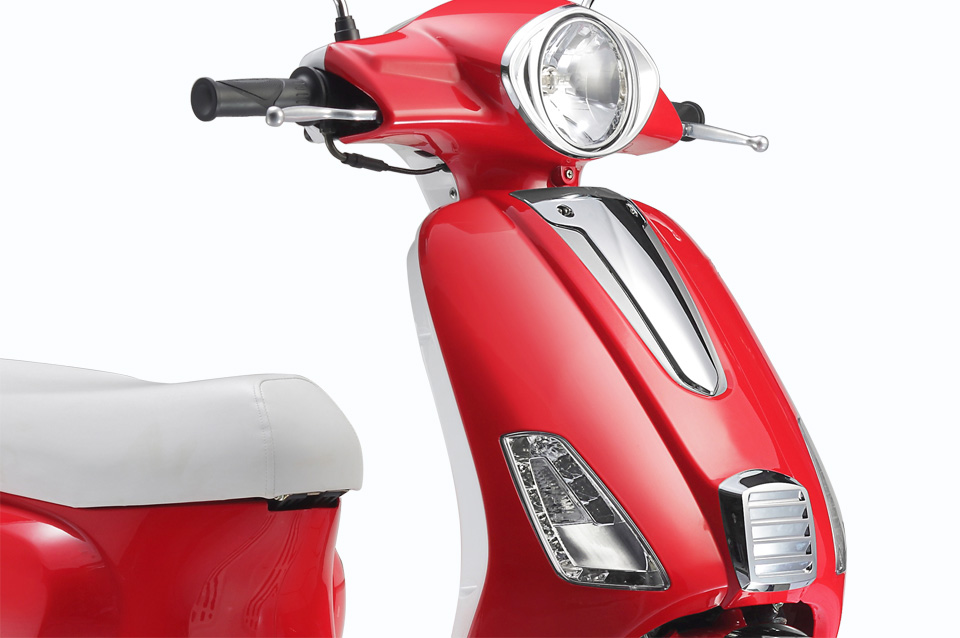

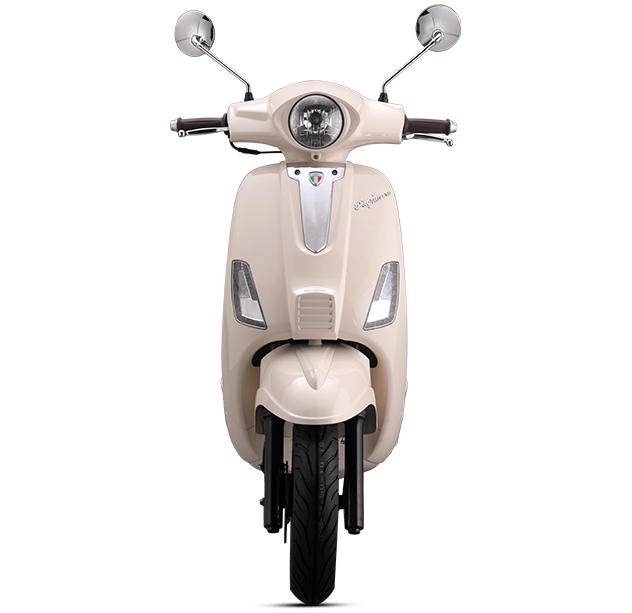

Retro and stylish round headlight design, equipped with bright and eye-catching LED turn signals, like a sky full of stars, more recognizable.

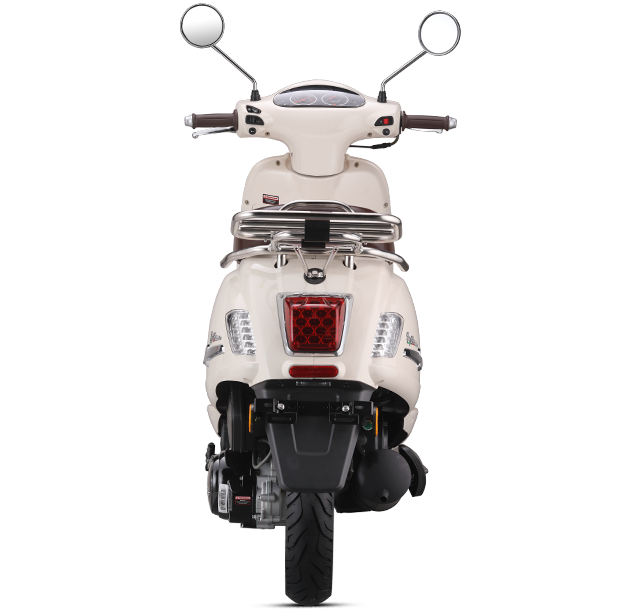

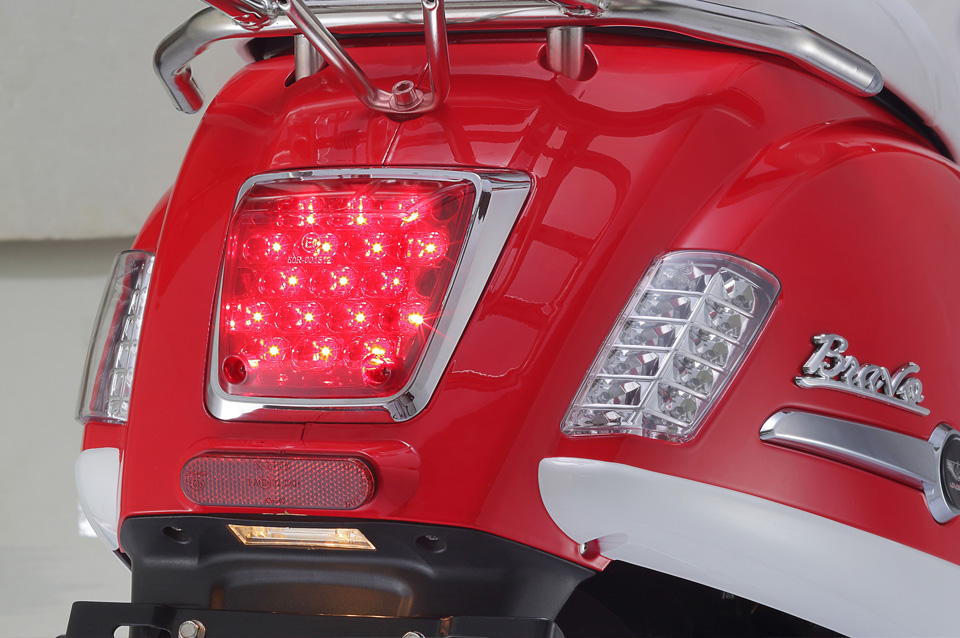

The rear taillights and turn signals are composed of several LED bulbs, which are like rubies, dazzling and noble. LED lights are not only beautiful, but also improve the recognition, making it brighter and safer to drive at night.

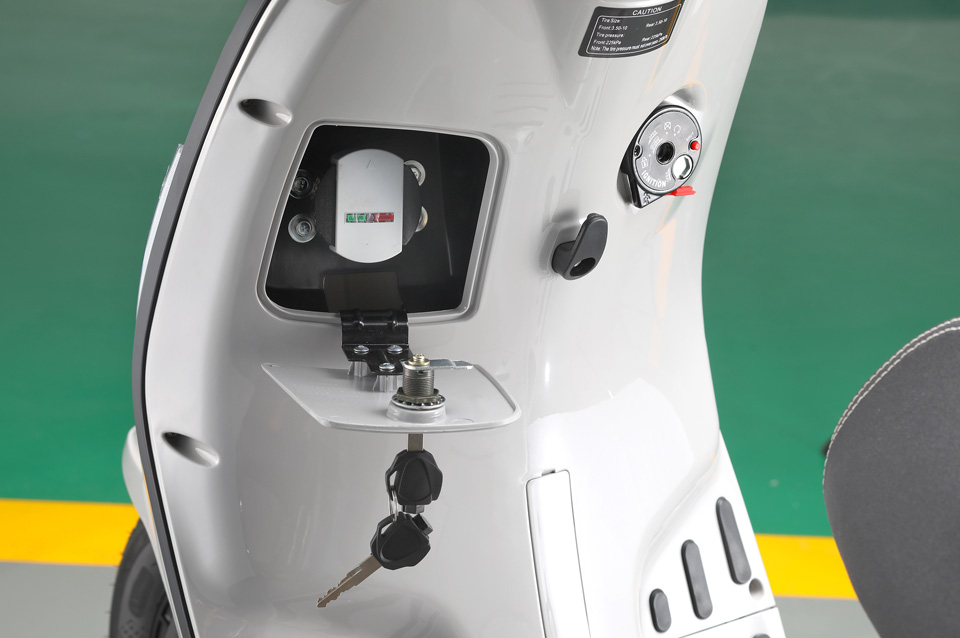

Not only is it convenient to refuel, but it also saves space in the bucket.

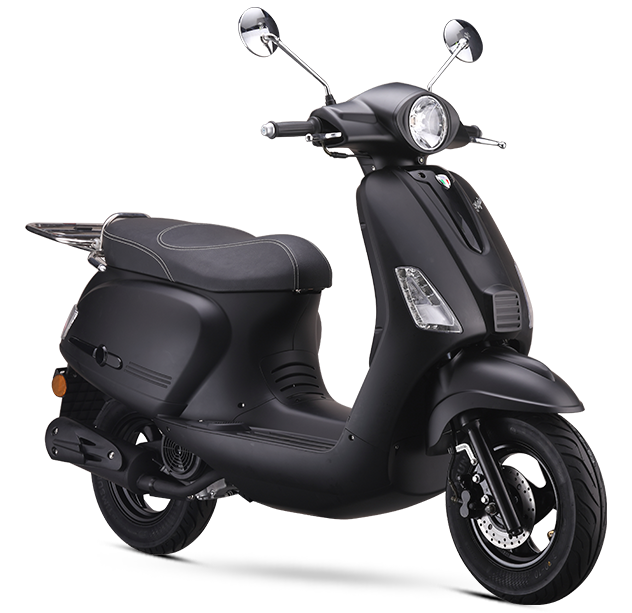

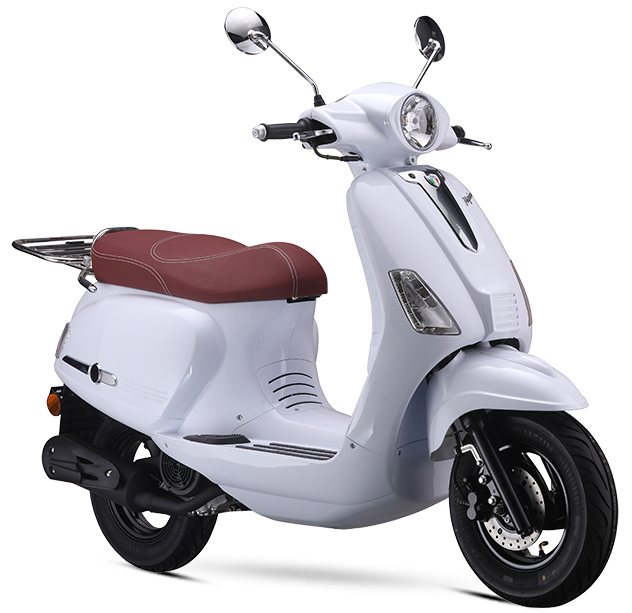

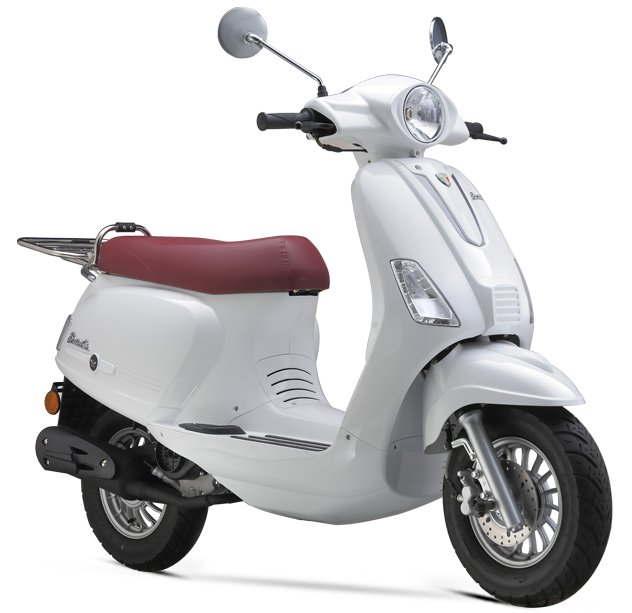

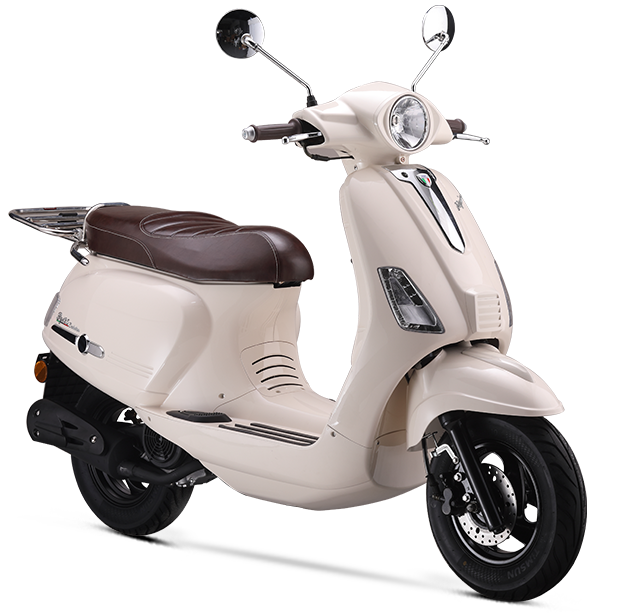

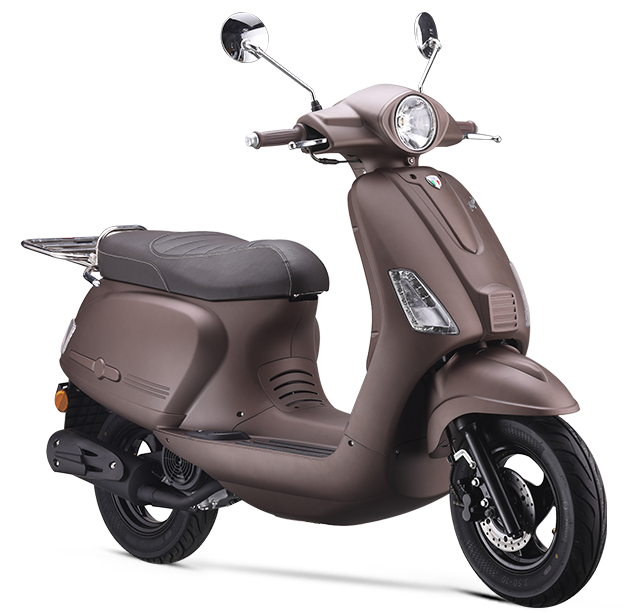

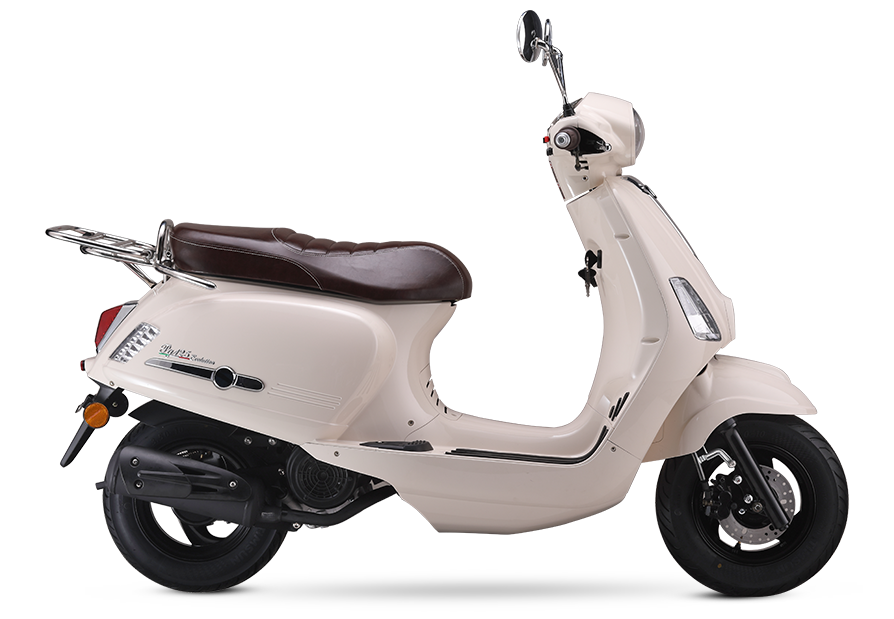

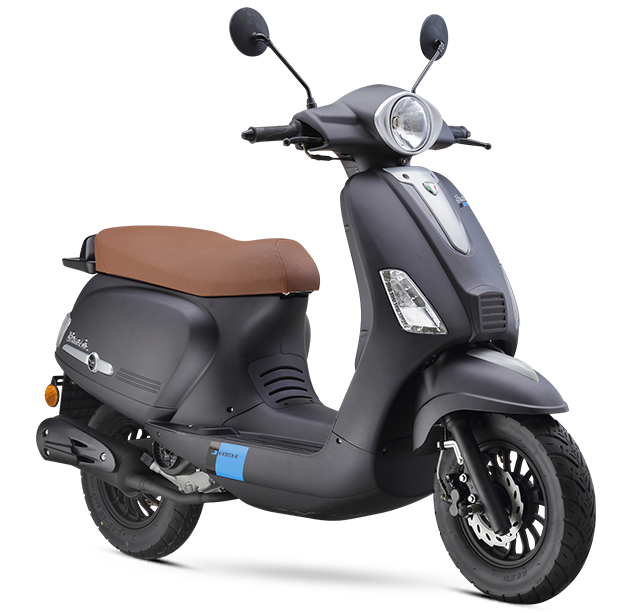

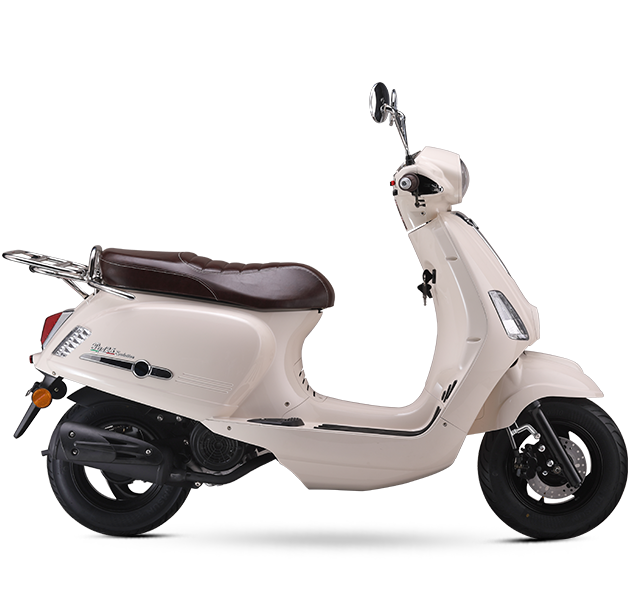

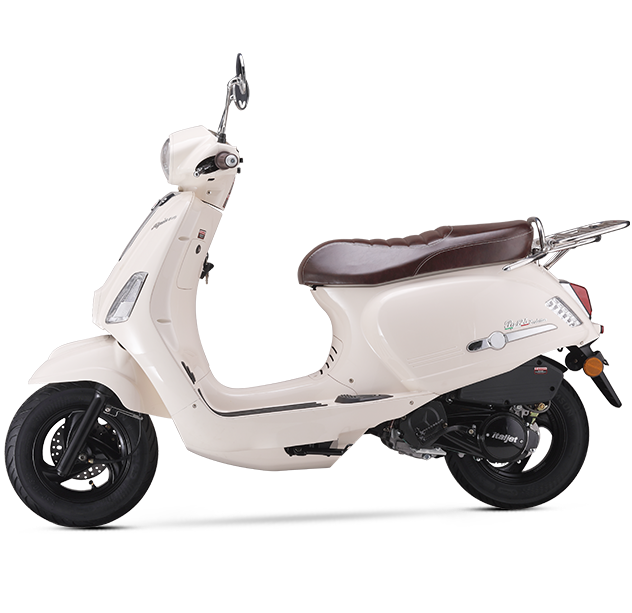

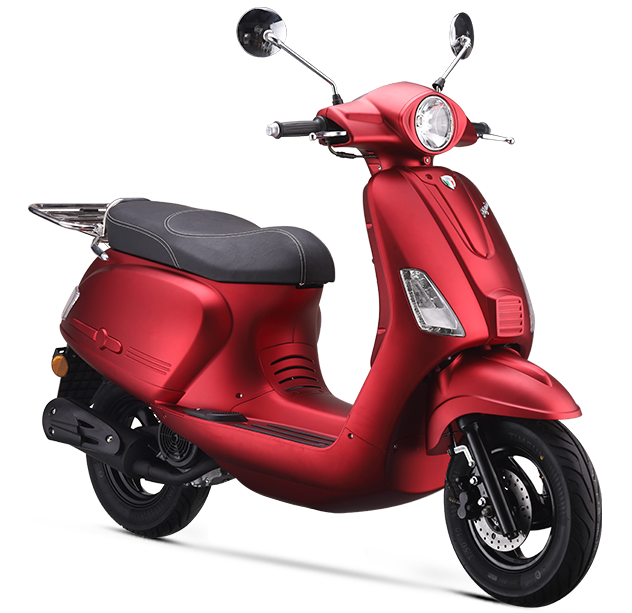

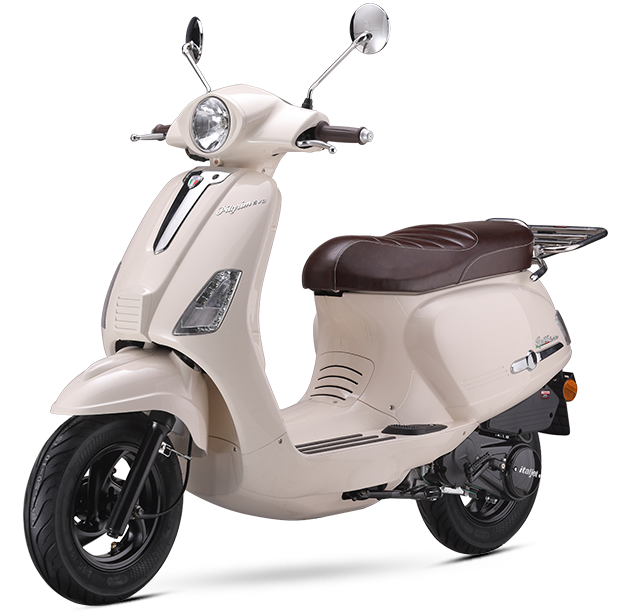

"Bravo", originated from the spirit of fashion innovation in Paris, France, has an irresistible retro style, and has the unique charm of elegance and fashion. The elegant curvilinear shape of "Bravo" is highlighted by chrome trims and elegant LED lamps. One glance at her will make you feel in love at first sight.
project | 50cc | 125cc | 150cc |
Dimensions | 1780×650×1120 | 1780×650×1120 | 1780×650×1120 |
wheelbase | 1260 | 1260 | 1260 |
Ground clearance | 110 | 120 | 120 |
net weight | 97 | 105 | 105 |
load | 75 | 150 | 150 |
top speed | ≤45 | ≤80 | ≤85 |
Economic fuel consumption | ≤1.9 | ≤2.8 | ≤2.8 |
Braking method (front and rear) | front disc rear drum | front disc rear drum | front disc rear drum |
Brake disc diameter | 180 | 180 | 180 |
Brake drum diameter | 110 | 110 | 110 |
Tire size (front and rear) |
3.50-10
3.50-10
|
3.50-10
3.50-10
|
3.50-10
3.50-10
|
Fuel tank capacity | 6.8L/6.6L | 6.8L/6.6L | 6.8L/6.6L |
Battery Specifications | 12V 7Ah | 12V 7Ah | 12V 7Ah |
Bore*stroke | 39.0×41.4 | 52.4×57.8 | 57.4×57.8 |
Maximum power | 2.2/7500 | 5.2/7500 | 5.8/7000 |
maximum torque | 2.8/5500 | 7.6/6000 | 8.3/6000 |
compression ratio | 10.4:1 | 9.2:1 | 10.3:1 |
cooling method | air cooling | air cooling | air cooling |
Lubrication method | splash | splash | splash |
transfer method | Infinitely variable speed | Infinitely variable speed | Infinitely variable speed |
Start method | Foot start/electric start | Foot start/electric start | Foot start/electric start |
Oil supply method | CDI/ECU | CDI/ECU | CDI/ECU |
Juneng Motorcycle Technology Co., Ltd. was established in August 2005
More than 30 countries and regions overseas
OEM/ODM Bravo Gasoline scooter Suppliers Want to get our quotation?
