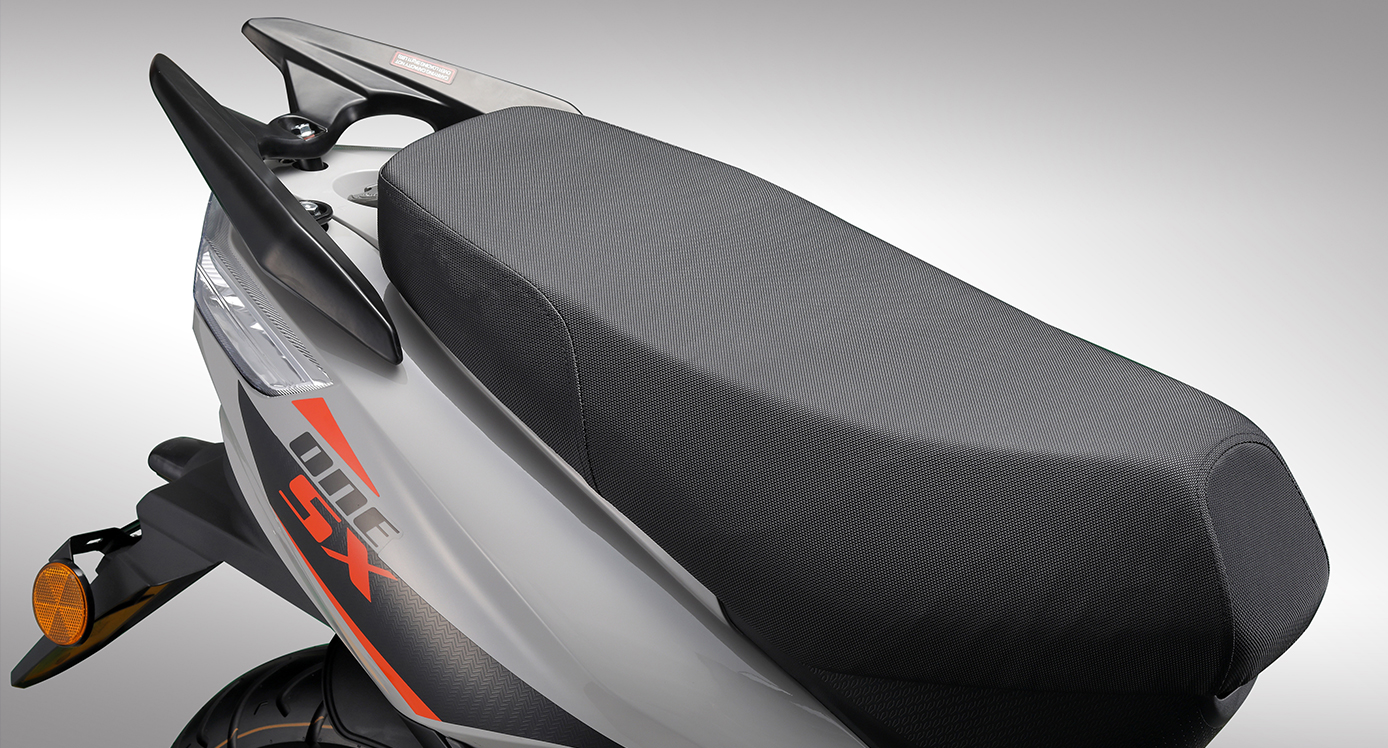

High resilience cloth texture non-slip saddle
The saddle fits snugly against the hip shape, wrapping meticulously, and the front and rear anti-slip design keeps comfort at all times.
The saddle fits snugly against the hip shape, wrapping meticulously, and the front and rear anti-slip design keeps comfort at all times.

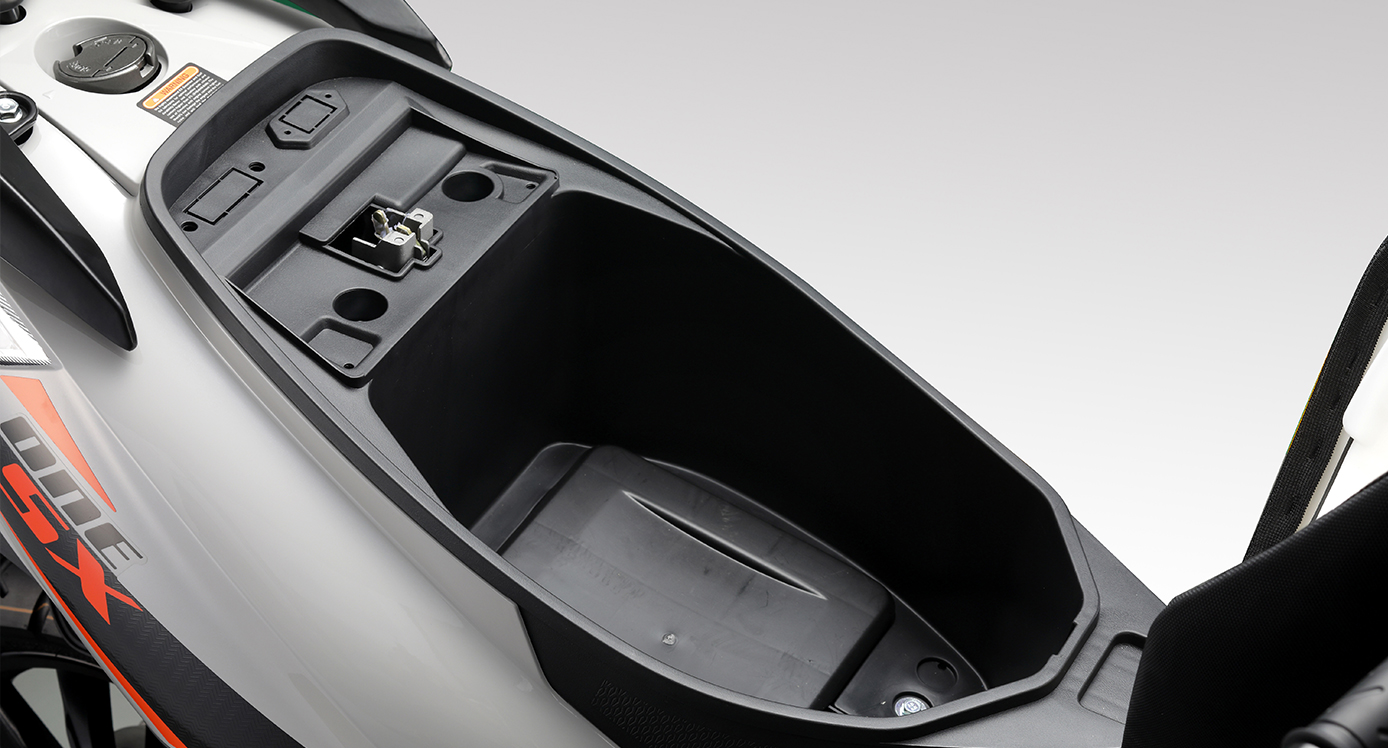

The oversized rear glove box of the same class car can hold a helmet and a raincoat to hold your favorites.

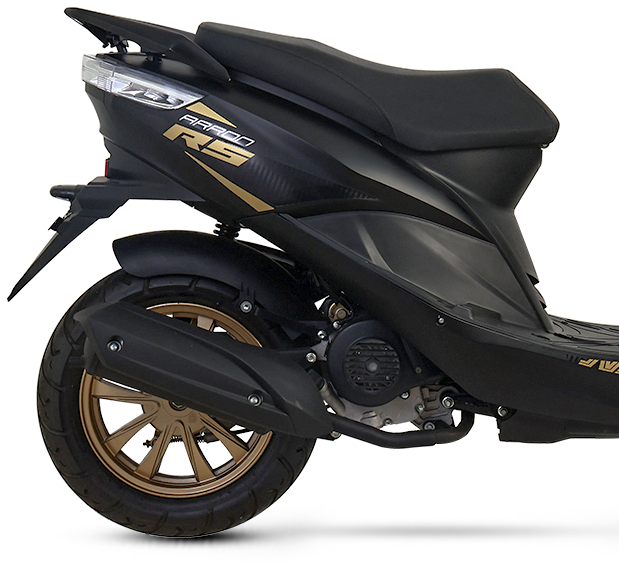

Elegant atmosphere without losing personality; all made of 409 stainless steel, never rust.

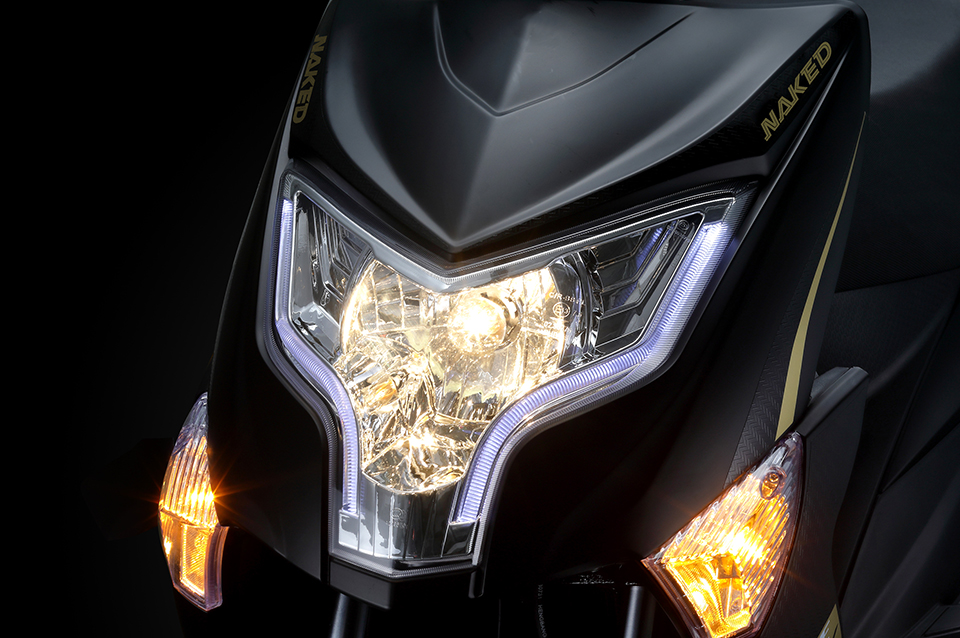

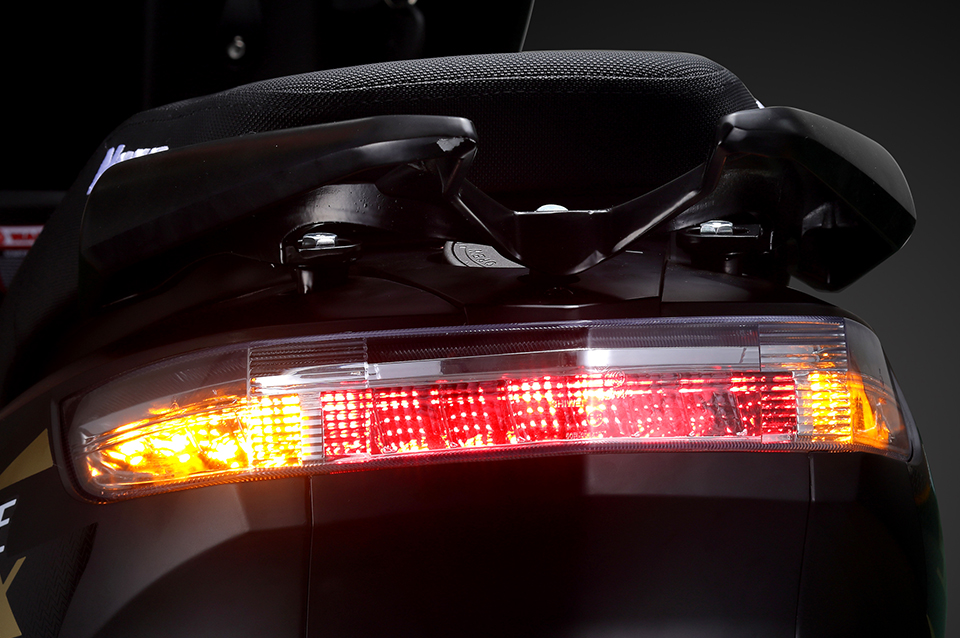

The whole vehicle lighting adopts LED light source, coupled with unique style, full of technology and futuristic sense. LED lights are not only beautiful, but also improve the recognition, fashion atmosphere, more personality, brighter and safer driving at night.
The whole vehicle lighting adopts LED light source, coupled with unique style, full of technology and futuristic sense. LED lights are not only beautiful, but also improve the recognition, fashion atmosphere, more personality, brighter and safer driving at night.

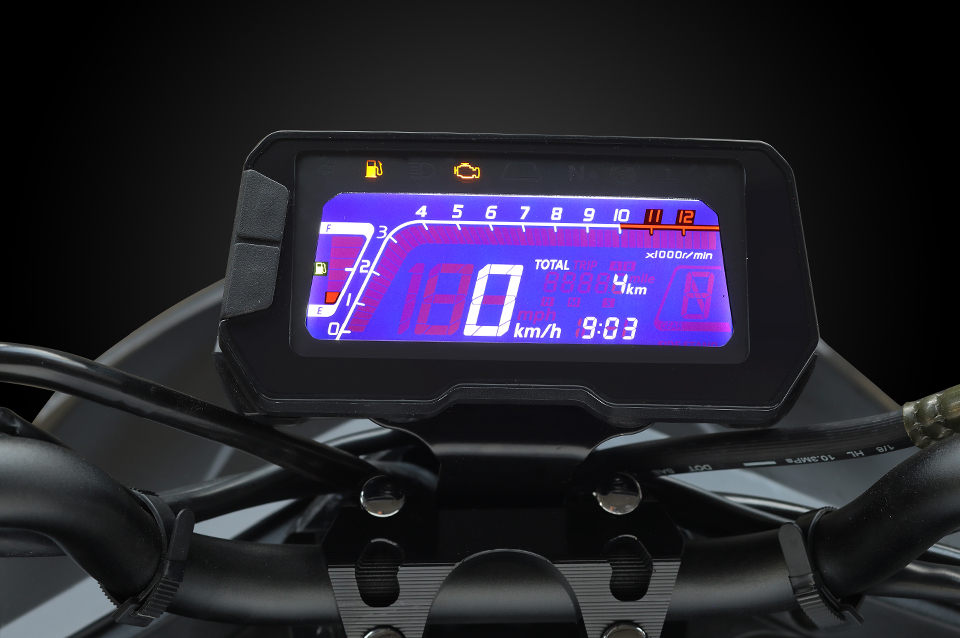

The dynamic LCD instrument is more than a little clear, fashion and technology coexist, with a strong sports atmosphere, good looks, and younger.

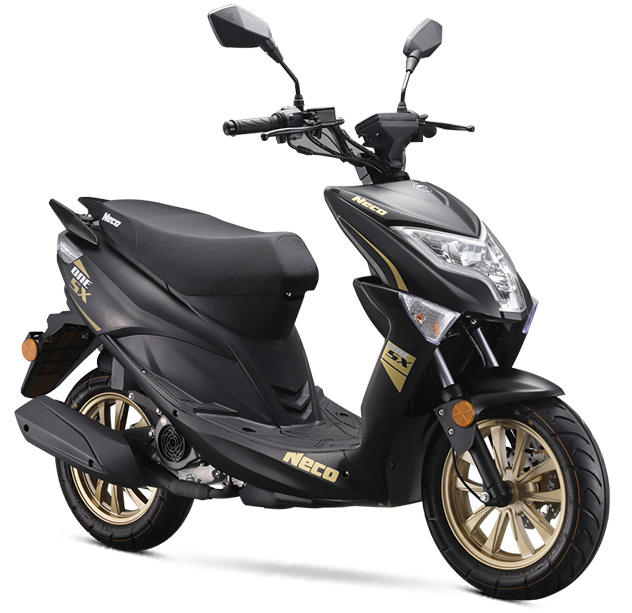

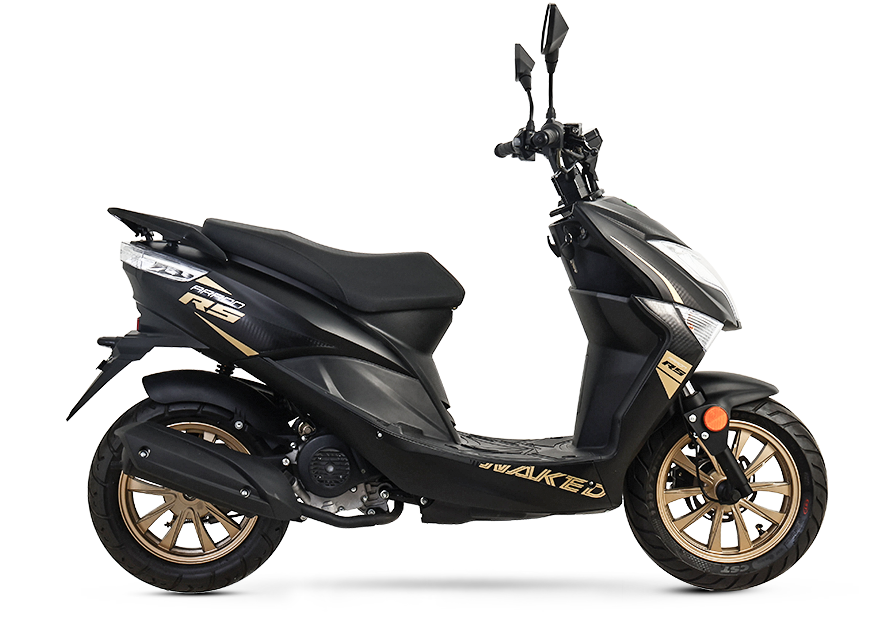

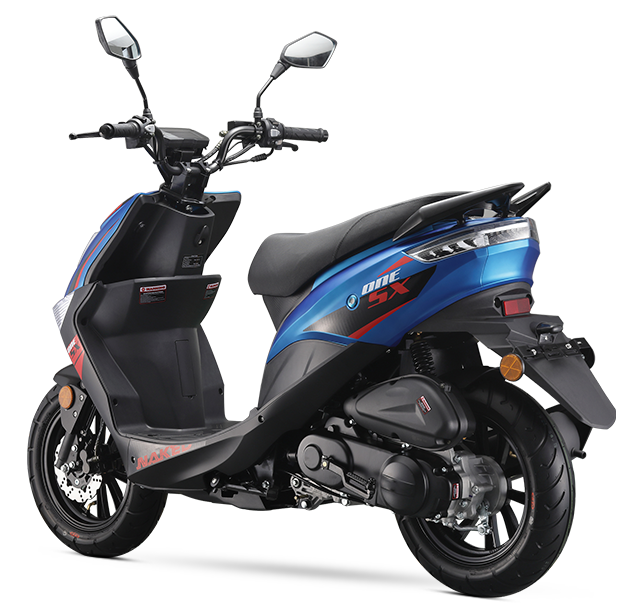

The beauty of sports is instantly exciting! Novel and compact body design, light and agile, endows it with an unusual street style.
project | 50cc | 125cc |
Dimensions | 1760×770×1080 | 1770×660×1110 |
wheelbase | 1290 | 1260 |
Ground clearance | 110 | 120 |
net weight | 84 | 88 |
load | 75 | 150 |
top speed | ≤45 | ≤80 |
Economic fuel consumption | ≤1.9 | ≤2.8 |
Braking method (front and rear) | front disc rear drum | front disc rear drum |
Brake disc diameter | 180 | 185 |
Brake drum diameter | 110 | 110 |
Tire size (front and rear) |
120/70-12
120/70-12
|
3.50-10
3.50-10
|
Fuel tank capacity | 4 0.5L | 4 0.5L |
Battery Specifications | 12V 7Ah | 12V 7Ah |
Bore*stroke | 39.0×41.4 | 52.4×57.8 |
Maximum power | 2.2/7500 | 5.2/7500 |
maximum torque | 2.8/5500 | 7.6/6000 |
compression ratio | 10.4:1 | 9.2:1 |
cooling method | air cooling | air cooling |
Lubrication method | splash | splash |
transfer method | Infinitely variable speed | Infinitely variable speed |
Start method | Foot start/electric start | Foot start/electric start |
Oil supply method | ECU | CDI |
Juneng Motorcycle Technology Co., Ltd. was established in August 2005
More than 30 countries and regions overseas
OEM/ODM Arron Naked Gas scooter Suppliers Want to get our quotation?
