our
Features

MOTORCYCLE

  • +
  • +
  • +
  • +

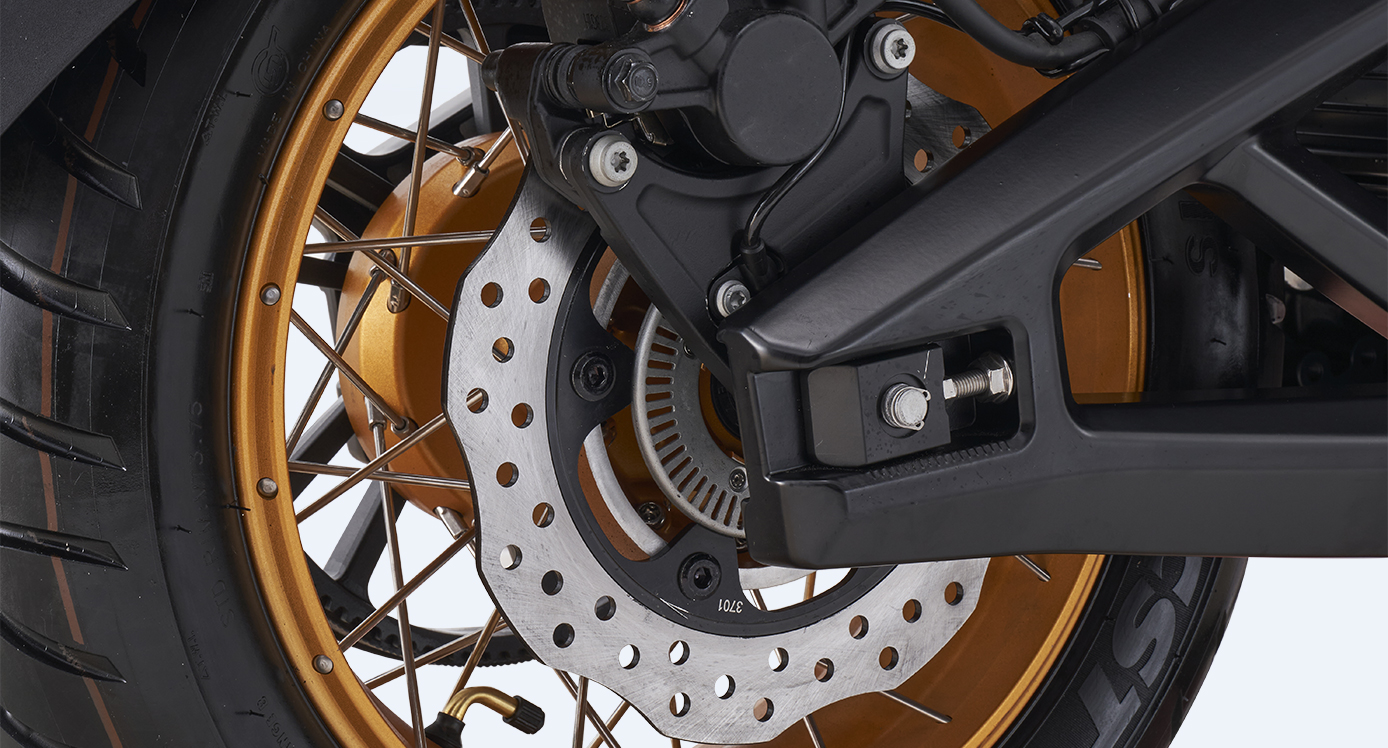

  • Braking system

    ABS (Anti-Lock Braking System) Front and rear wheel dual-channel anti-lock brakes to increase stability and deliver superior stopping power ,provide quarantees for safe cycling. Tcs (Treaction Control system) If wheels begin to slip, the TCS will intervene automatically, applying different power levels to each wheel to stabilize the vehicle,provide guarantees for safe cycling

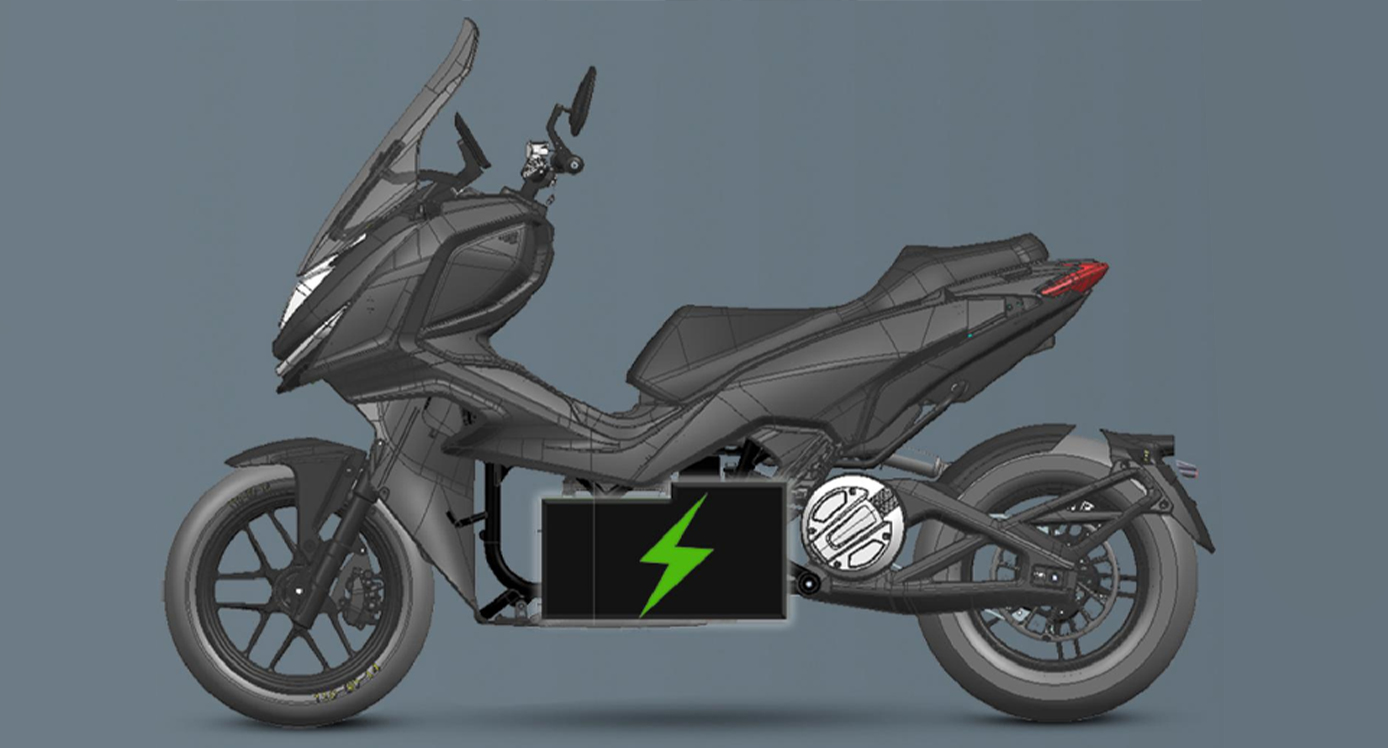

  • Battery, electric parts and system

    Adopting Canbus communication system, BMS battery management system, 72V 120AH Li-ion battery, 18KW rated power centre-mounted motor, new fast-charging technology, fully charged in 3 hours.

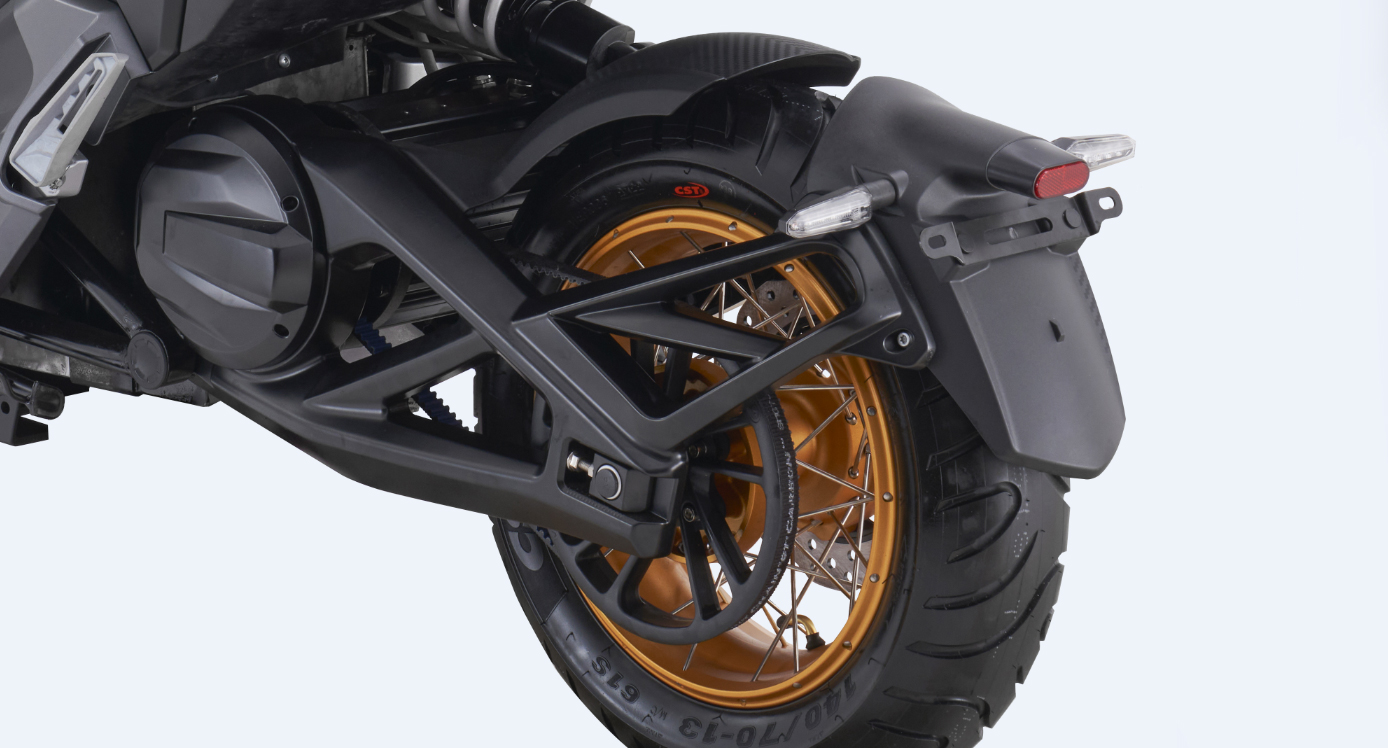

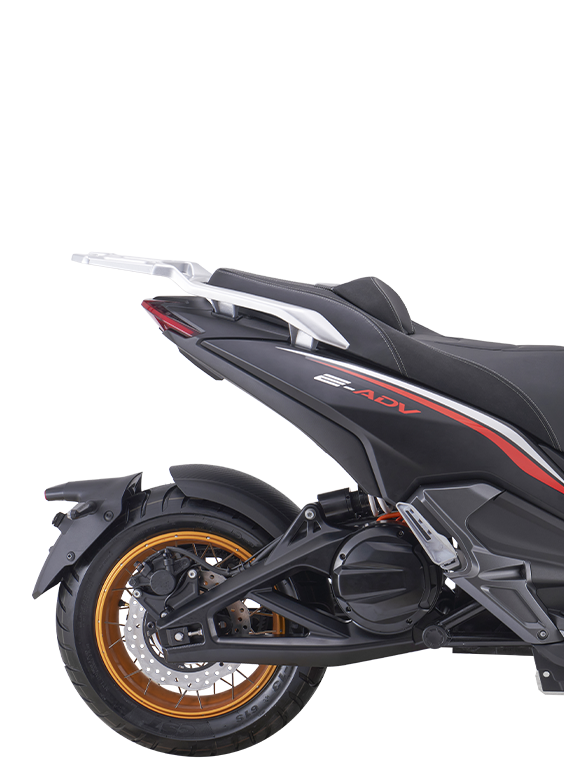

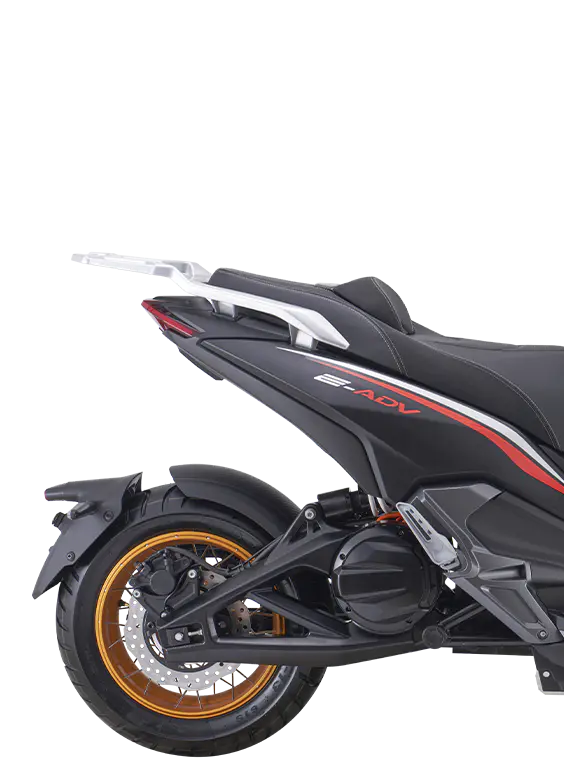

  • LSC Power system

    Using a permanent magnet synchronous moto! with a peak power of 18kw, paired with a durable noise reducing belt, and a perfect speed ratio adiustment of the front and rear drive wheels,it stimulates strong powel

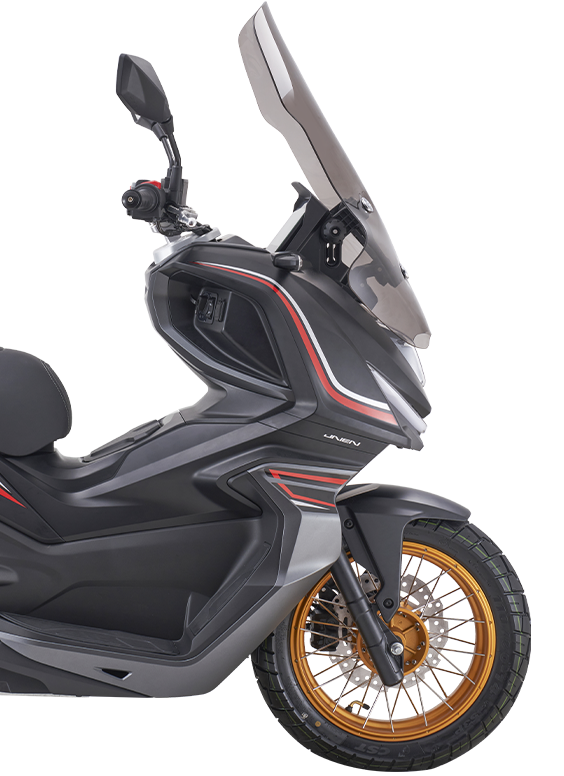

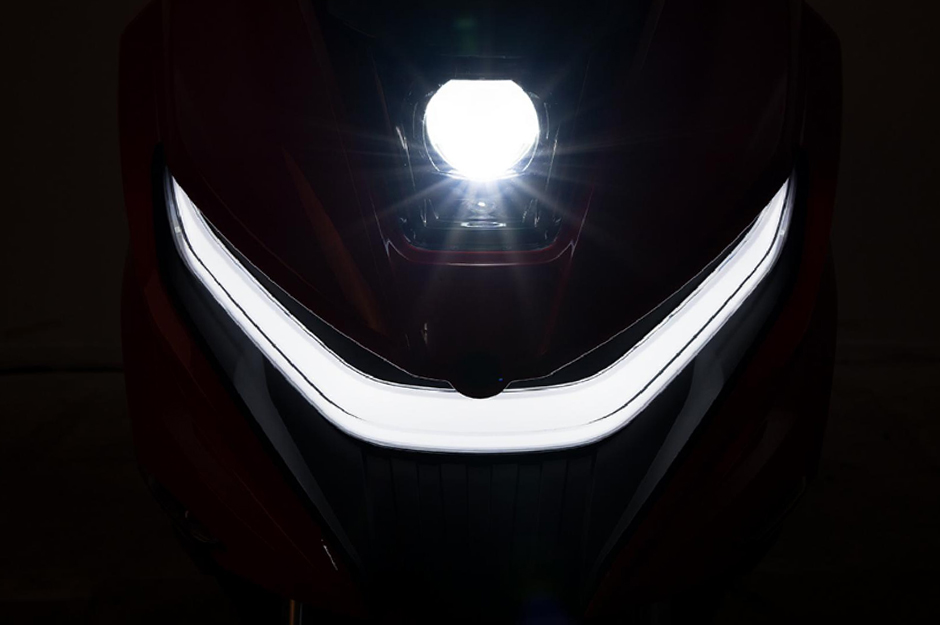

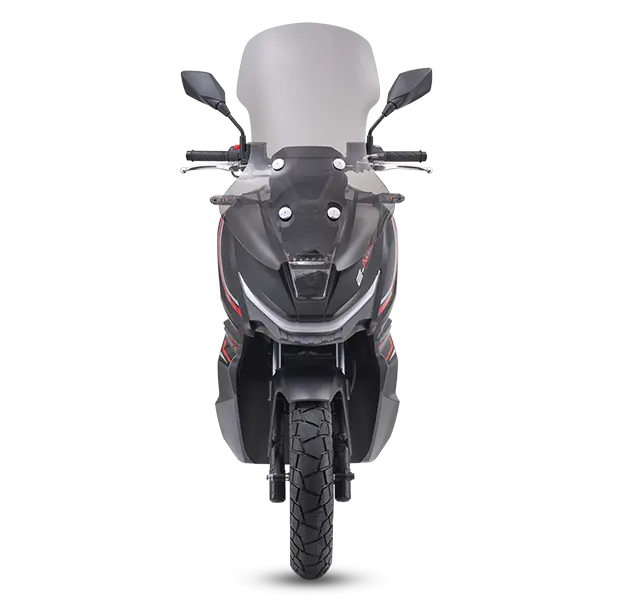

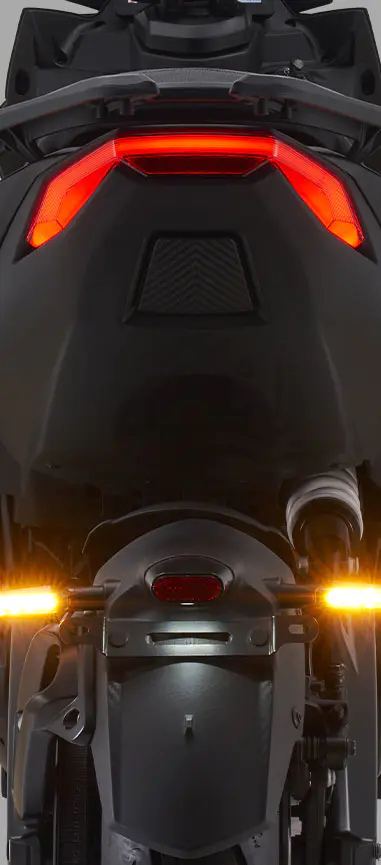

  • Automotive grade lens lights

    Equipped with car grade electrically adjustable horizontal lens headlights and stylish breathing running lights, it boasts excellent design while ensuring nighttime riding safety

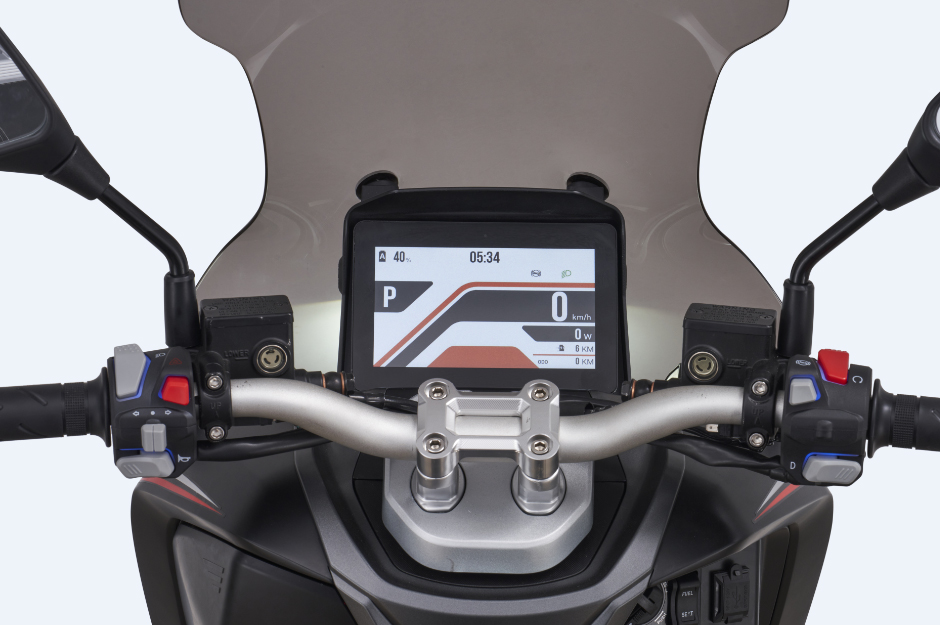

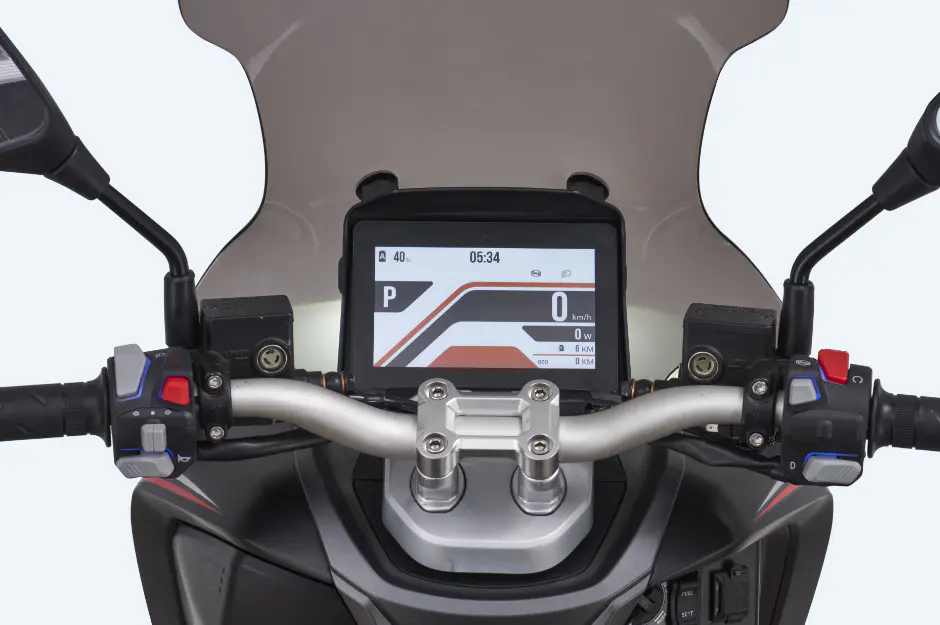

  • Speedometer

    The 7-inch TFT multi-function LCD instrument makes it easier to manage the vehicle.

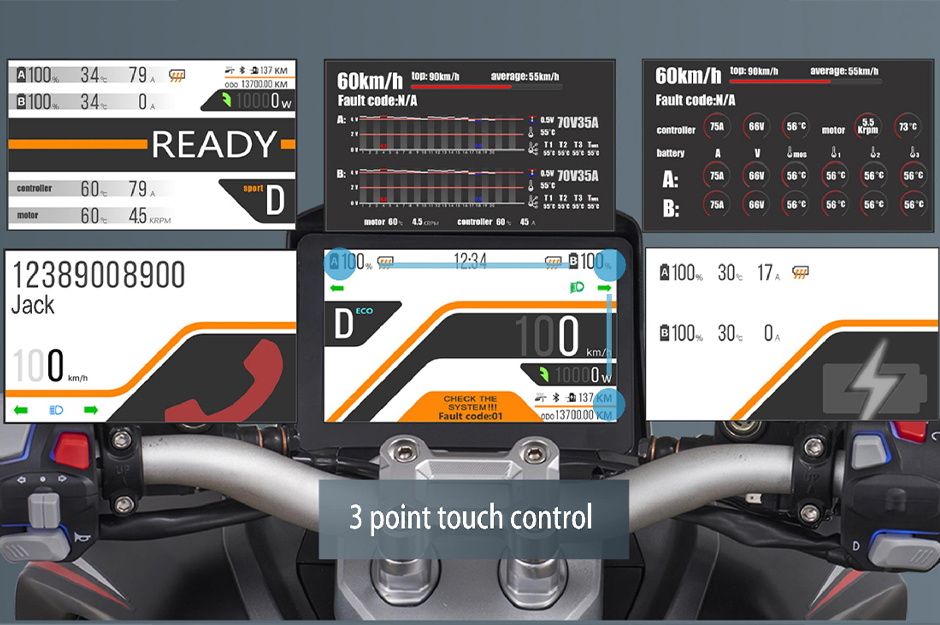

  • BLD Cloud display system

    Caller lD display; CANBUS Communication methods; Fault code display; 7 Inch TFT screen; Customizing the starting up logo; Background data display

01 / 03

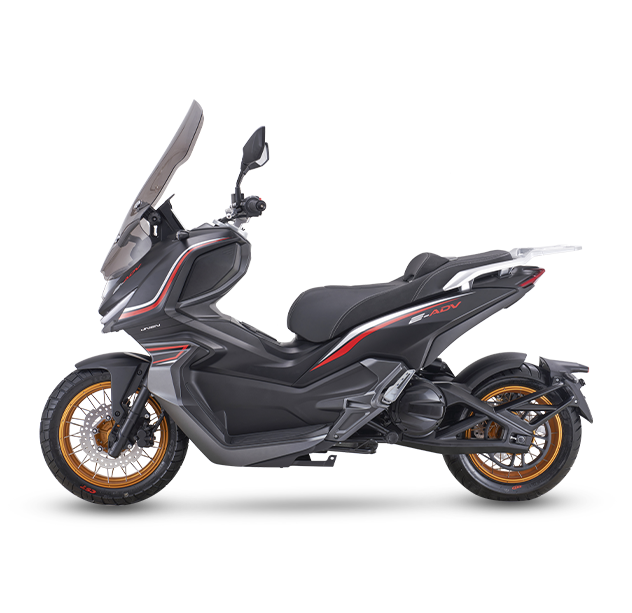

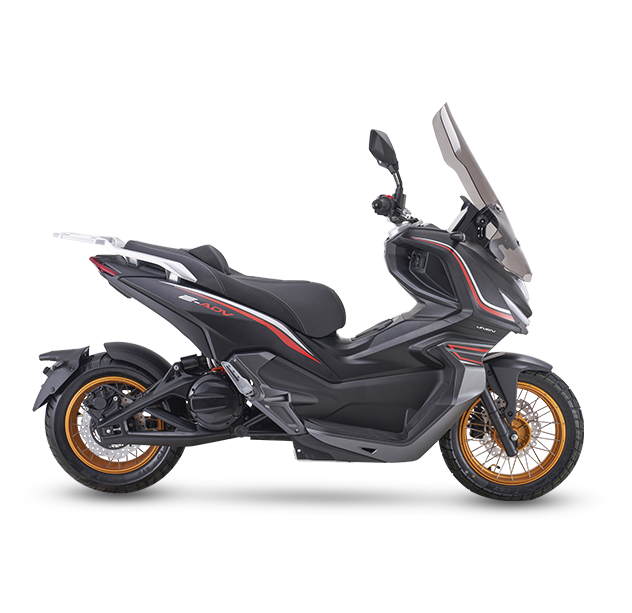

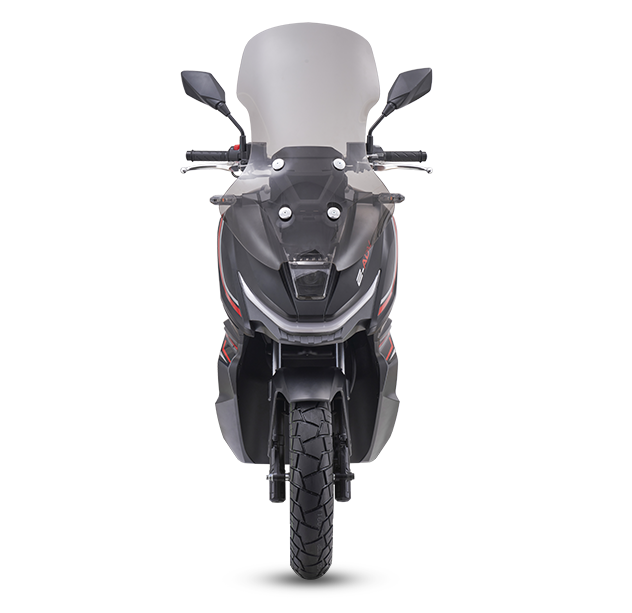

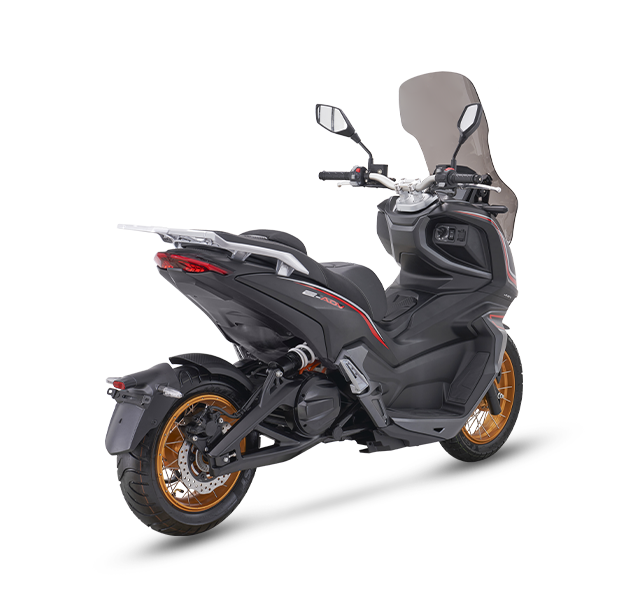

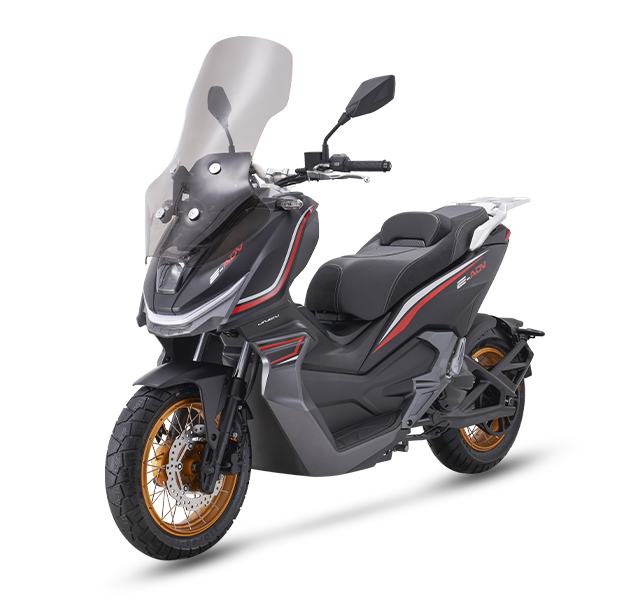

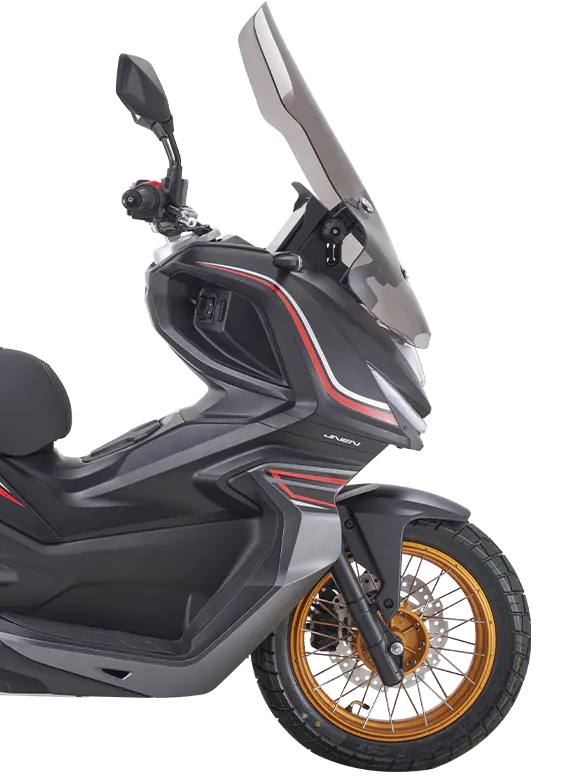

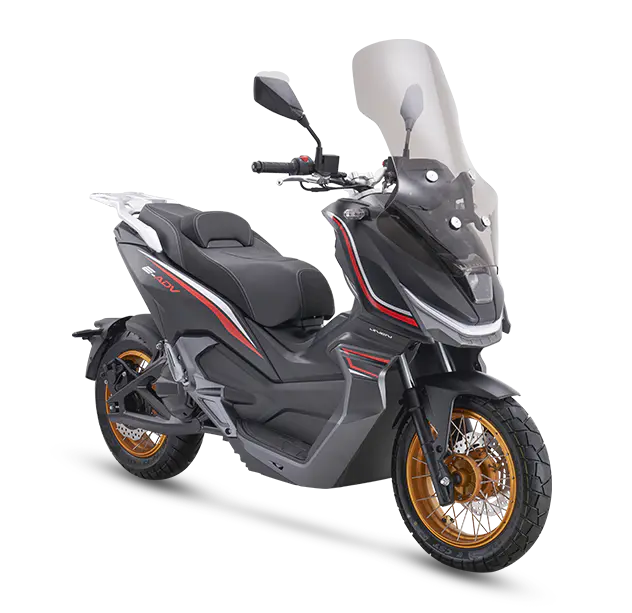

ORION

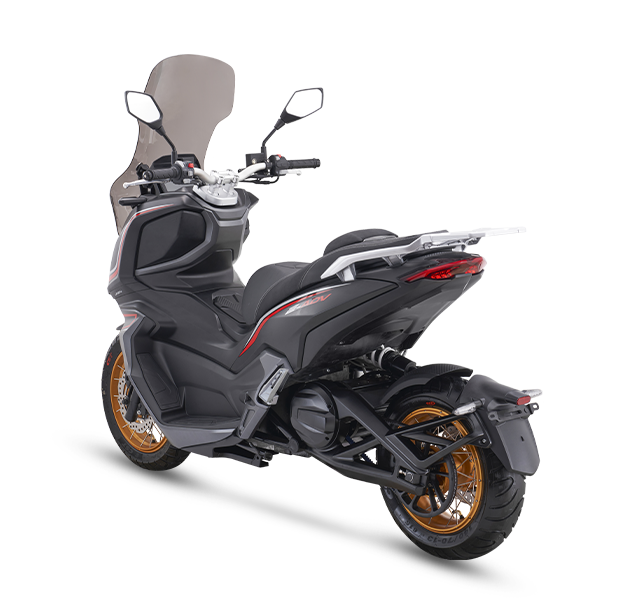

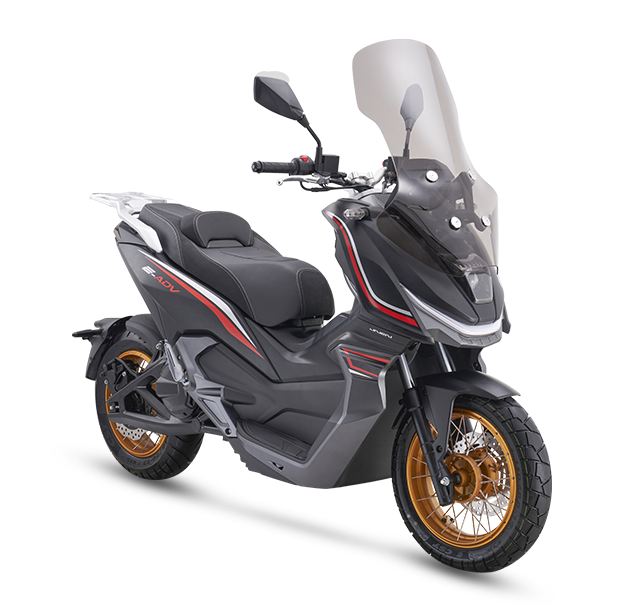

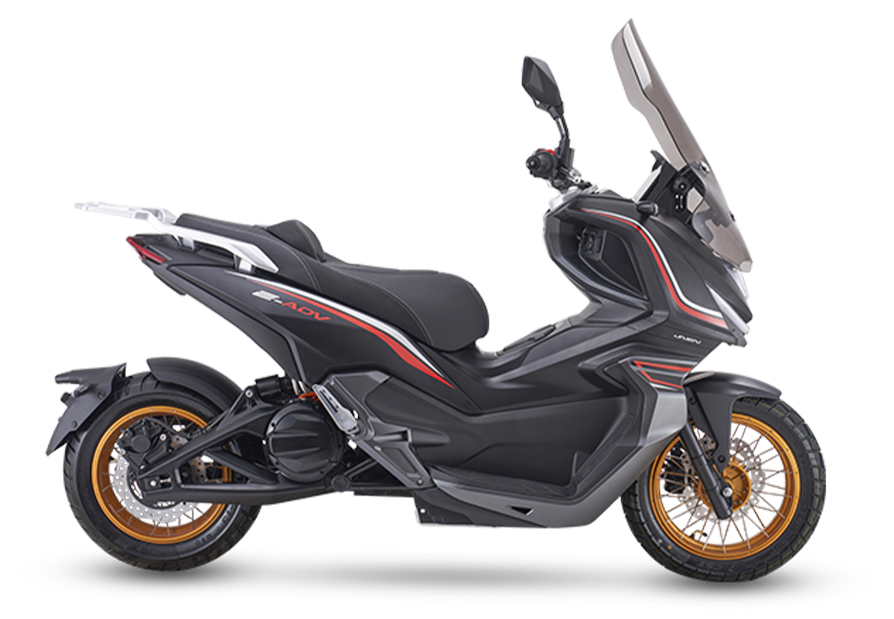

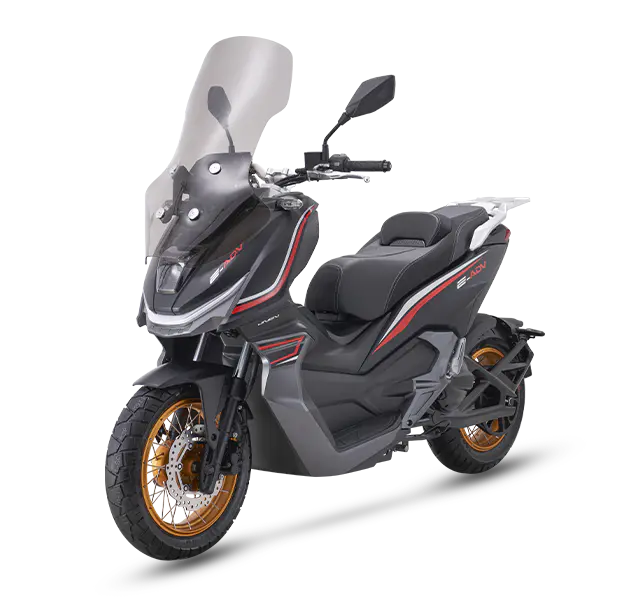

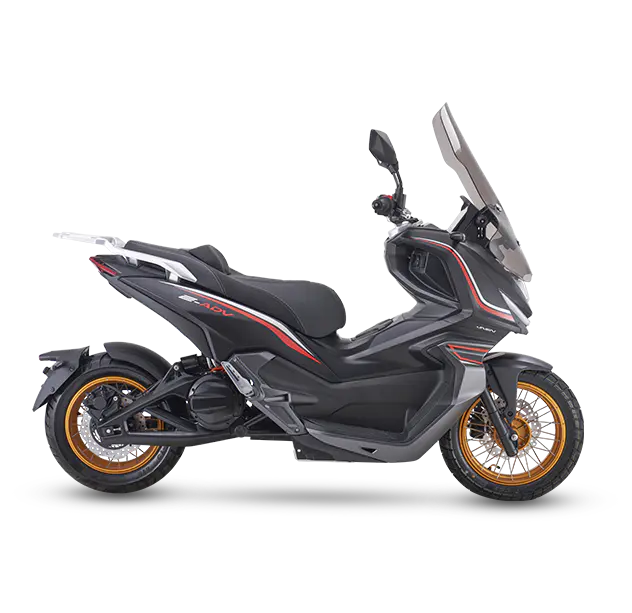

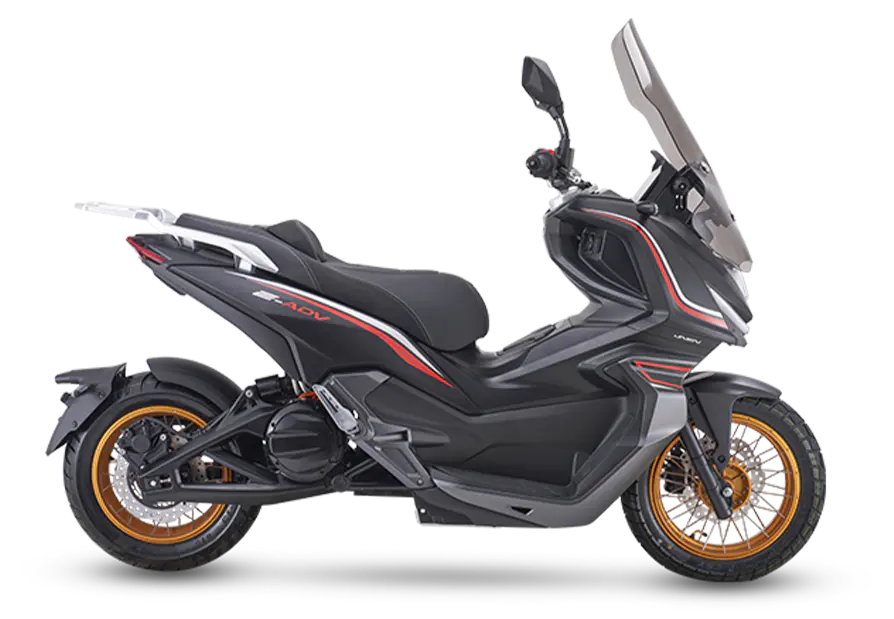

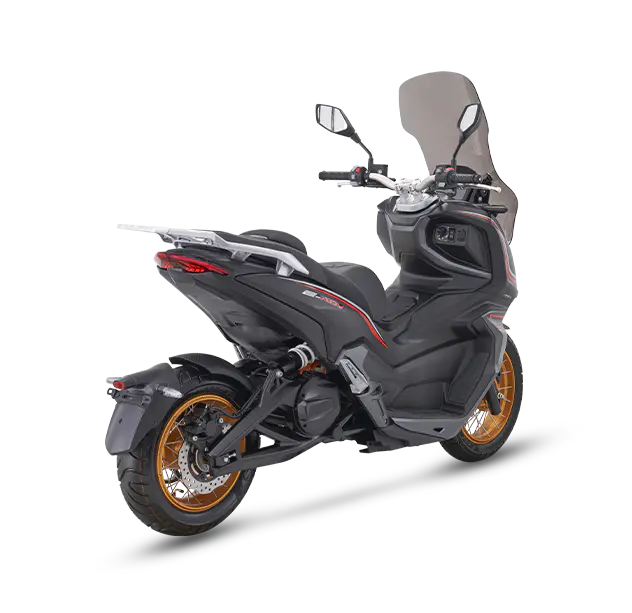

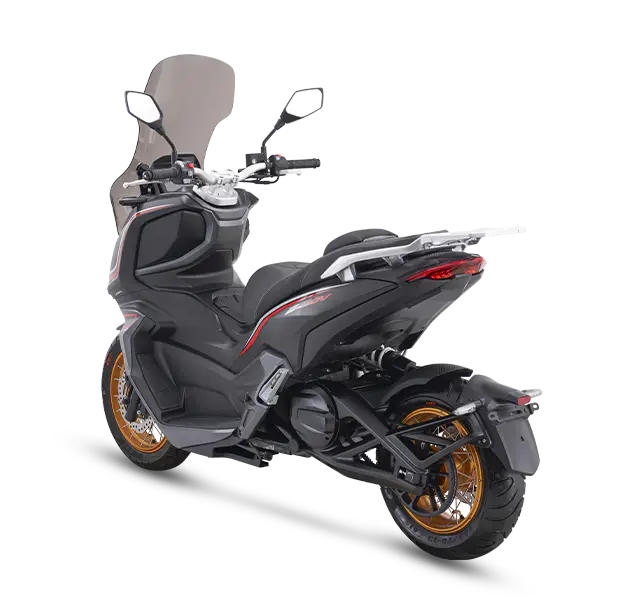

The ORION is a high-speed sporty electric scooter.
Adopting Canbus communication system,  BMS battery management system, Li-ion battery is 72V 120AH, new fast charging technology, it can be fully charged in 3 hours. The mileage of one full charge can reach more than 160KM. Maximum speed can reach 130KM/hour.
Make your outdoor travelling full of speed and passion!

Name: ORION

MOTOR TYPE V-CROSS
Certificate L3E
Communication method CANBUS
MOTOR TYPE Middle drive motor
RATED POWER 12KW
PEAK POWER 18KW
Display Meter 7 inches TFT
Brake Mode(F/R) Dual channel ABS braking system
Front Absorber Hydraulic spring shock absorber
Weight 186 kg
TYPE BATTERY LITHIUM
BATTERY CAPACITY 72V120AH(8.64KW)
Charger 72V25A
LIGHT Automotive grade lens headlights
Charging TIME 5Hours
Max. Speed 130km/h
0-100km/h time 7.7S
Wheelbase 1460(mm)
Controller 72V Bus current 300A, peak phase current 700A
Rear suspension  Hydraulic spring shock absorber
Tires(F/R) Front 110/80-14;Rear 130/70-13 tubeless
Mileage per Charge 150 KM
40HQ quantity 36 units
USB CHARGER Y
DRIVING MODE Drive, Sport ,Reverse
REMOTE ,SMART KEY Y
Maximum hill-starting ability 20°
LENGTH/ BREADTH/ HEIGHT (mm) 2050*710*1120
Seat Height(mm) 800
Ground clearance(mm) 150
COLORS (EXTERIOR) Customizable
